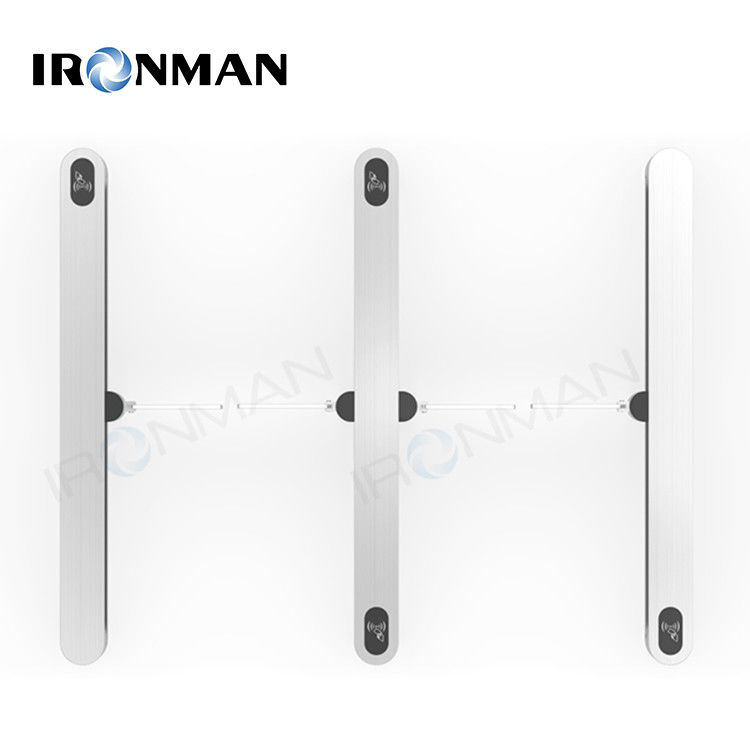

Automatic Flap Barrier Turnstile , High Speed Security Gates For Office Buildings

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Automatic Flap Barrier Turnstile

,

Office Buildings Flap Barrier Turnstile

,

High Speed Security Gates

Name:
Arc Speed Gate Turnstile
Dimensions:
Length 1500*Width127*Height980mm
Swing Arm Material:
10mm Acrylic Swing Door
Housing Material:
AISI SUS304
Application:
Office Buildings / Hotels / Residential Quarters
Channel Width:
550MM
Power Supply Voltage:
AC220V±10V
Alarm Function:
With Sound And Light Alarm Function
Name:
Arc Speed Gate Turnstile
Dimensions:
Length 1500*Width127*Height980mm
Swing Arm Material:
10mm Acrylic Swing Door
Housing Material:
AISI SUS304
Application:
Office Buildings / Hotels / Residential Quarters
Channel Width:
550MM
Power Supply Voltage:
AC220V±10V
Alarm Function:
With Sound And Light Alarm Function
Description
Automatic Flap Barrier Turnstile , High Speed Security Gates For Office Buildings
Arc Speed Gate Turnstile <TDH-ST605> Product Specifications
Product Parameters Dimensions: Length 1500*Width127*Height980mm Box Material: Box: Stainless Steel SUS304 Foot 1.5mm
Upper Cover: Stainless Steel SUS304 Foot 1.5mm
Swing Arm Material: 10mm Acrylic Swing Door Channel Width: Open Type; Recommended ≤1000mm



Technical Parameter

◆Box material: austenitic stainless steel SUS304
◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
◆Power supply voltage: AC220V±10V
◆Drive motor: DC brushless motor (24~36VDC)
◆Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance;
◆Service life: more than 8 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Working environment: -35℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch on after power off
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set

Expanding Function ▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open
△ Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Features:



1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.

2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.

The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.



Application: Office / School / Park / Supermarket / Subway

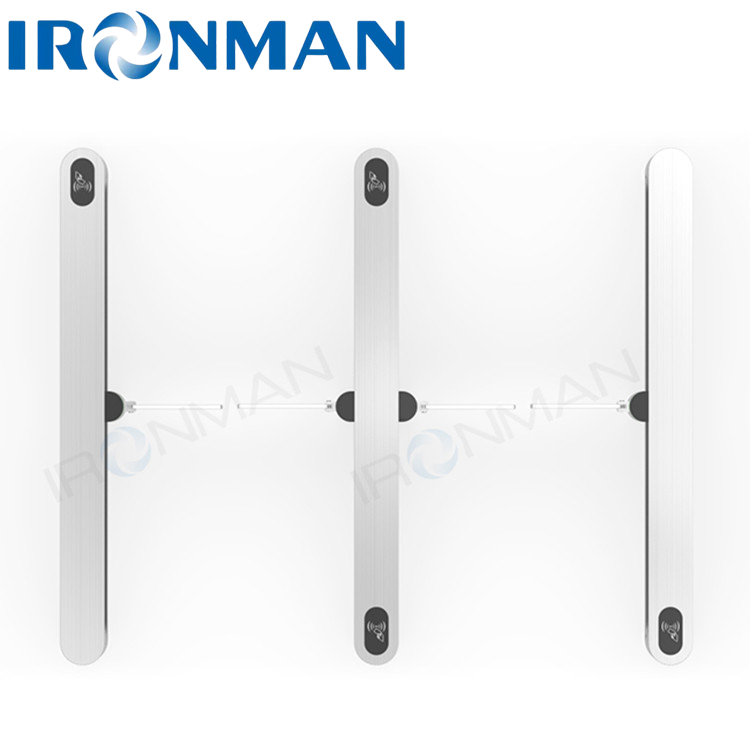

Automatic Flap Barrier Turnstile  , High Speed Security Gates For Office Buildings 0
