Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |

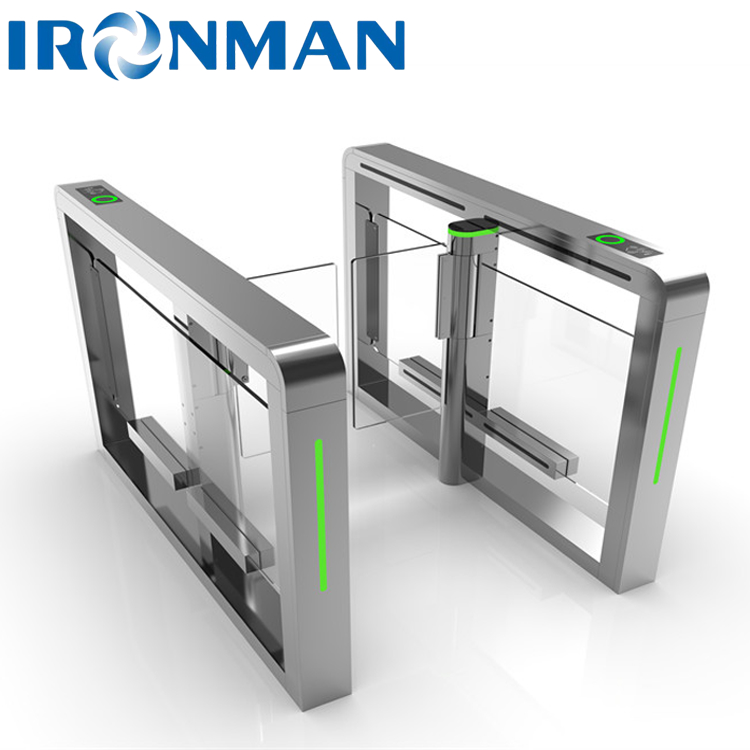

Arc Speed Gate Turnstile |
Dimensions: |
Length 1400*Width 120*Height 980mm |
Swing Arm Material: |
10mm Acrylic Swing Door |
Application: |
Enterprises And Institutions |
Channel Width: |
550MM |
Power Supply Voltage: |
AC220V±10V |
Housing Material: |
AISI SUS304 |
Alarm Function: |
With Sound And Light Alarm Function |
Name: |
Arc Speed Gate Turnstile |
Dimensions: |
Length 1400*Width 120*Height 980mm |
Swing Arm Material: |
10mm Acrylic Swing Door |
Application: |
Enterprises And Institutions |
Channel Width: |
550MM |
Power Supply Voltage: |
AC220V±10V |
Housing Material: |
AISI SUS304 |
Alarm Function: |
With Sound And Light Alarm Function |
| Arc Speed Gate Turnstile <TDH-ST606> Product Specifications | ||||
| Product Icon | Document Number: | |||
| Edition: | A/0 | |||
| Revision Time: | ||||
| Revised By: | ||||
| Product Parameters | Dimensions: | Length 1400*Width 120*Height 980mm | Box Material: | Box: Stainless Steel SUS304 Foot 1.5mm Upper Cover: Stainless Steel SUS304 Foot 1.5mm |
| Swing Arm Material: | 10mm Acrylic Swing Door | Channel Width: | Open Type; Recommended ≤1000mm | |
| Technical Parameter | ◆ Box material: austenitic stainless steel SUS304 ◆ Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing ◆ Power supply voltage: AC220V±10V ◆ Drive motor: DC brushless motor (24~36VDC) ◆ Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance; ◆ Service life: more than 8 million times of continuous opening and closing ◆ Infrared sensor: 8 pairs; (support more than 8 pairs of configuration) ◆ Working environment: -35℃～75℃ ◆ Relative humidity: 0～90% (no condensation) ◆ Communication interface: RS232 serial port ◆ Communication protocol: MODBUS protocol ◆ The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on) ◆ Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Technical Parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board | ||||
| ●Anti-trailing: prevent the non-permissible situation of too many people at one time. | ||||
| ●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch on after power off | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲ Swipe the card in the channel △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open △ Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application:
Suitable for indoor pedestrian passage places;
office buildings
hotels
residential quarters
high-end factory parks
higher schools
hospitals
enterprises and institutions
government halls
sports venues
convention and exhibition centers;
