Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |

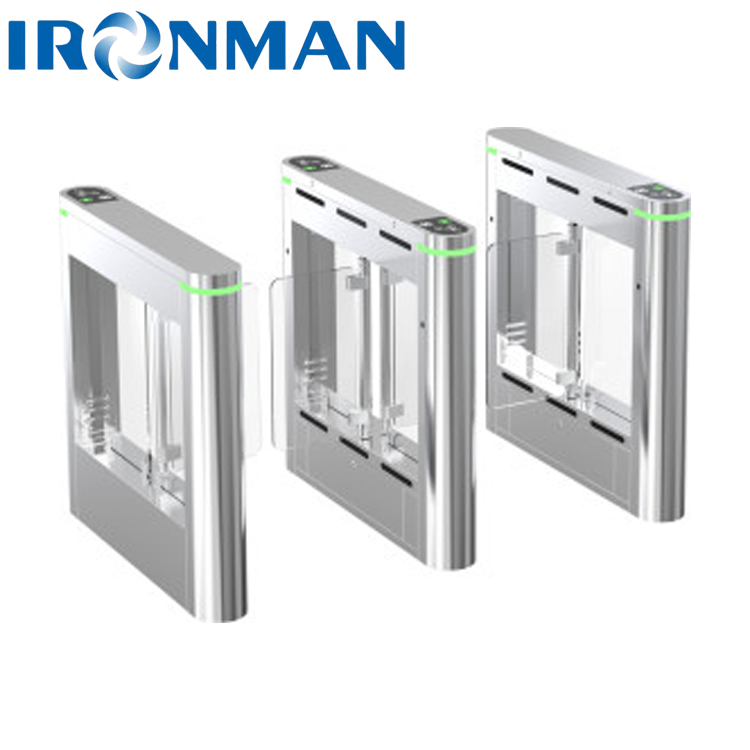

Arc Small Swing Gate |
Dimensions: |
1200*180*1020mm |
Swing Arm Material: |
10MM Acrylic (Stainless Steel Elbow Is Optional) |
Application: |
Schools / Colleges / Office Buildings |
Power Supply Voltage: |
AC220V±10V |
Housing Material: |
AISI SUS304 |
Alarm Function: |
With Sound And Light Alarm Function |
Channel Width: |
550MM |
Name: |
Arc Small Swing Gate |
Dimensions: |
1200*180*1020mm |
Swing Arm Material: |
10MM Acrylic (Stainless Steel Elbow Is Optional) |
Application: |
Schools / Colleges / Office Buildings |
Power Supply Voltage: |
AC220V±10V |
Housing Material: |
AISI SUS304 |
Alarm Function: |
With Sound And Light Alarm Function |
Channel Width: |
550MM |
| Arc Small Swing Gate <TDH-B201> Product Specifications | ||||
| Product Images | Document Number: | |||
| Edition: | A/2 | |||
| Revision Time: | 2022/8/29 | |||
| Revised by: | ||||
| Product Parameters | Dimensions: | 1200*180*1020mm | Box Material: | Top Cover: stainless steel SUS304 foot 1.2mm Box: stainless steel SUS304 foot 1.0mm |
| Swing Arm Material: | 10MM Acrylic (Stainless steel elbow is optional) | Channel Width: | ≤830mm | |
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing ◆Work Voltage: AC220V±10V ◆Driving Motor: DC brushless motor(24~36VDC) ◆Movement Structure: Horizontal helical gear anti-collision movement ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: 4 pairs; 8 pairs can be selected ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Functions | ●Alarm Function: Sound and light alarm function. | ||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. |
||||
| ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. | ||||
| ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. | ||||
| ● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. | ||||
| ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ●The gate opens after power failure. | ||||
| ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. | ||||
| ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set. | ||||
| Extensible Functions | ▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode. |
|||
| ▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel. |
||||
| ▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate. |
||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state. |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Flap Turnstile Feature:
1. Stable running with little noise.
2. Bi-direction passing or uni-direction.
3. When power off, arm will be dropped automatically.
4. High-end customization,Double Anti-pinch and Efficient and Durable.
5. Self-lock function: arm will be locked automatically after passenger passing.
6. Material selection specialized and Fashionable style: 304 stainless steel and unique design, simple and exquisite, with fine brushed texture, textural appearance, every detail is presented by cutting and polishing process.
Product Application
widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
