Arc Small Swing Gate<TDH-B201-CK>Product Specifications

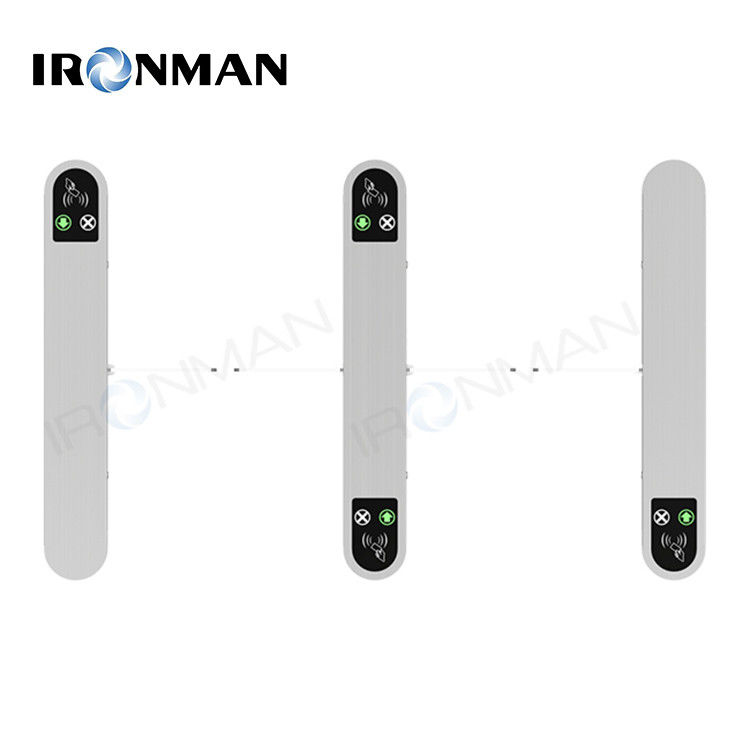

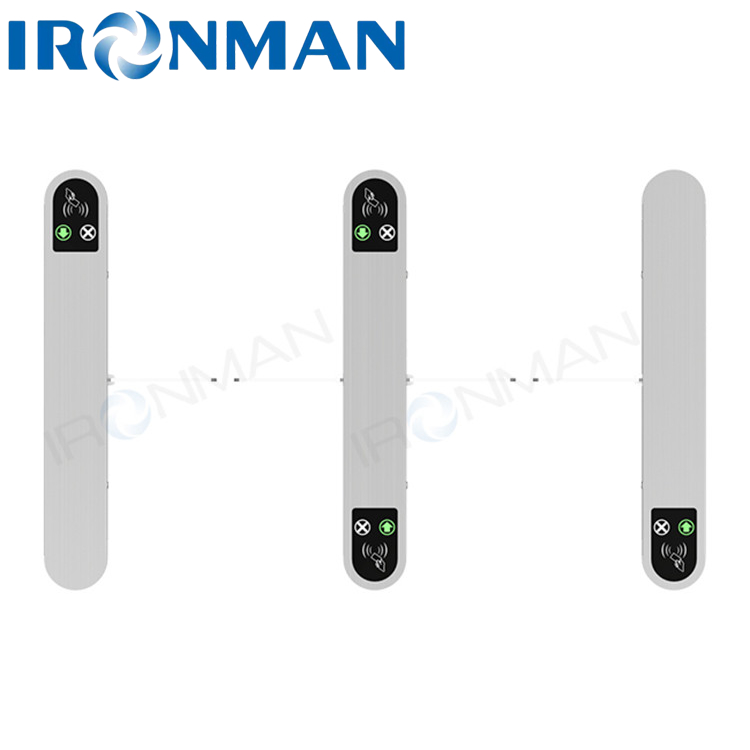

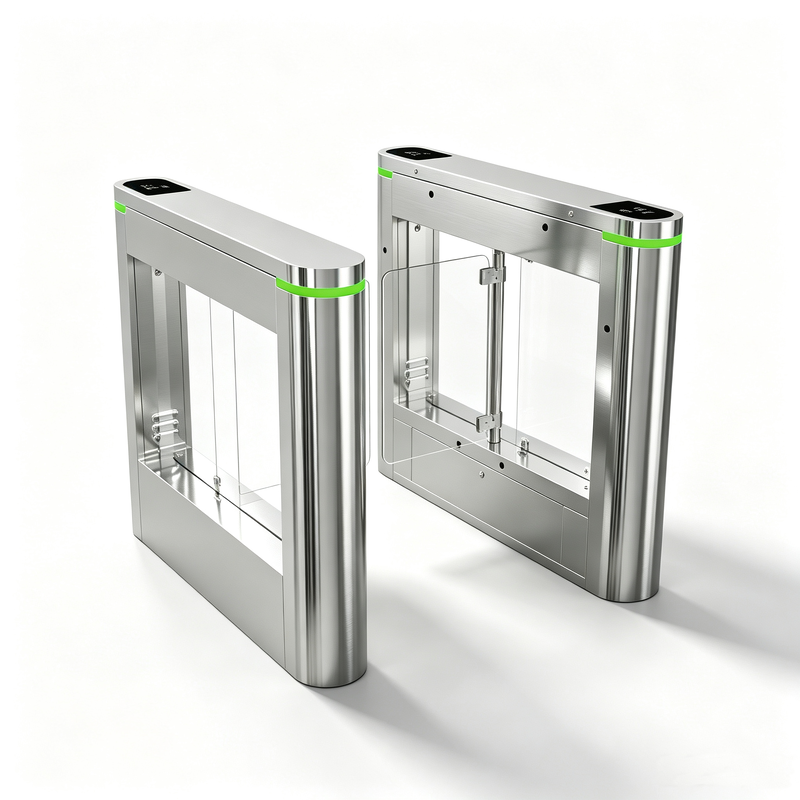

Product Images			Document Number:
			Edition:	A/0
			Revision Time:
			Revised by:

Product Parameters	Dimensions:	12001801020mm	Box Material:	Top Cover: stainless steel SUS304 foot 1.2mm Box: stainless steel SUS304 foot 1.0mm
	Swing Arm Material:	10MM Acrylic (Stainless steel elbow is optional)	Channel Width:	Unlimited; Suggest≤1200mm
Technical Parameters	◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing ◆Work Voltage: AC220V±10V ◆Driving Motor: DC brushless motor(24~36VDC) ◆Movement Structure: Horizontal helical gear anti-collision movement ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: 4 pairs; 8 pairs can be selected ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters	Basic Functions	●Alarm Function: Sound and light alarm function.
		●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
		●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
		●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
		● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
		●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
		●Access Control: The external port can be connected to a variety of biometric identification devices.
		●The gate opens after power failure.
		●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
		●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

	Extensible Functions	▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode.
		▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
		▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel.
		▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
		▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state.
		▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
