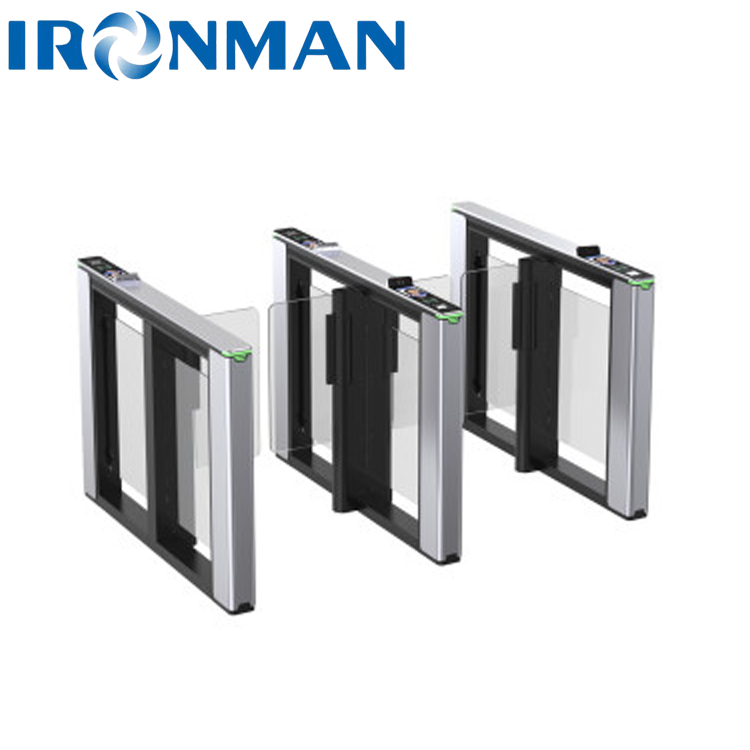

Office Buildings Speed Gate Turnstile AC220V 1500*120*980mm

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Office Buildings Speed Gate Turnstile

,

Speed Gate Turnstile AC220V

,

Office Building Turnstiles

Name:
Speedgate Turnstile
Dimensions:
1500*120*980mm
Wing Material:
Transparent Acrylic;T=10MM
Application:
Airports, Subways, Office Buildings
Supply Voltage:
AC220V±10V
Lightning Protection:
2KV
Housing:
AISI SUS304 1.5MM
Application:
Factories, Office Building, Hotel
Basic Function:
Anti-interference
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G:
Passage Mode
Input Voltage:
AC220V±10% ,50Hz
Name:
Speedgate Turnstile
Dimensions:
1500*120*980mm
Wing Material:
Transparent Acrylic;T=10MM
Application:
Airports, Subways, Office Buildings
Supply Voltage:
AC220V±10V
Lightning Protection:
2KV
Housing:
AISI SUS304 1.5MM
Application:
Factories, Office Building, Hotel
Basic Function:
Anti-interference
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G:
Passage Mode
Input Voltage:
AC220V±10% ,50Hz
Description
Office Buildings Speed Gate Turnstile AC220V 1500*120*980mm





Product Specifications of (TJ-LBST01) Swing Turnstile
Picture of the product Document number:
Version A/0
Revision Time
Revised by

Product parameters Dimensions 1500*120*980mm Housing Material: Housing: Corrosion Resistant Electrolytic Plate 1.5mm
Top Cover: Cast aluminum alloy 10mm
Column:Cast aluminum alloy 3mm
wing material: Transparent Acrylic;T=10mm Surface: Column:Corrosion resistant electrolytic plate black matte baking paint
Cover and column:
Aluminum alloy oxidation (standard color: space gray)
Product configuration: Single Channel
Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/
optional:Access control system / card swiping module / QR code module / face recognition equipment
Product Drawing:
技术参数 ◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 1.5mm
◆supply voltage:AC220V±10V
◆Drive motor: servo motor
◆Movement structure: Planetary metal gear reducer:high-speed, precise, silent, and average failure-free
◆Service life: 12,000,000 times of continuous opening and closing
◆Infrared sensor: 8 pairs (support more than 8 pairs)
◆Opening method:RS485/RS232/IO
◆EMC Standard: Antistatic level 3,Air discharge 15KV
◆Lightning Protection:2KV
◆Motor: servo motor,High precision clutch movement
◆Working temperature:-20℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Opening speed:<0.5S(aujustable)
◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function parameter Basic Function ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function
●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at one time.
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Extension Function ▲ Passing Mode
△ Normal: normal pedestrian passing mode
△ Passing: automatic vehicle / electric vehicle / motorcycle passing mode
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Application:

Suitable for indoor pedestrian passage places;

hospitals

enterprises and institutions

government halls

office buildings

hotels

residential quarters

high-end factory parks

higher schools

sports venues

convention and exhibition centers;
