| Place of Origin: | china |
| Brand Name: | Tiejun Turnstile |
| Certification: | ISO9001 |
| Product Specifications of (TJ-LBST01) Swing Turnstile |
||||

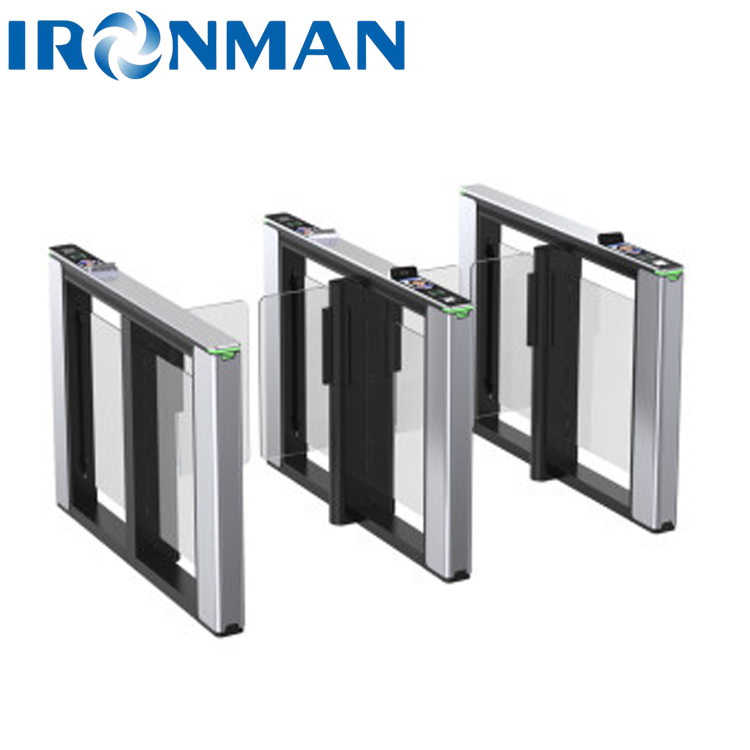

| Picture of the product | Document Number: | |||
| Version | A/0 | |||
| Revision Time | ||||
| Revised by | ||||
| Product parameters | Dimensions | 1500*120*980MM | Housing Material: | Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast aluminum alloy10mm Column:Cast aluminum alloy3mm |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Column:Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation (standard color: space gray) |
|
| Product configuration: | Single Channel Standard:Single core chassis 2 set/turnstile tutrnstile 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/ optional:Access control system / card swiping module / QR code module / face equipment |
|||
| Product Drawing: | ||||
| 技术参数 | ◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 1.5mm ◆Service life:5,000,000 times of continuous opening and closing ◆Input voltage: AC220V±10% ,50Hz～60Hz ◆Communication interface: RS232 serial port ◆Communication protocol: Modbus Protocol ◆Drive motor: DC brushless motor(24~36VDC) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Turnstile access speed: 30~50 people/min (memory mode can be turned on) ◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the tutrnstile closes automatically, and the time can be adjusted as needed) |
|||
| 功能参数 | 基本功能 | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Features
Fast induction pass,Small footprint and powerful control panel
Application
Tripod turnstile can be used in many places and is convenient for exit and entrance management, It ensures the safety of people at access relying on its intelligence control to access. The good structure also make it easy for maintenance.
