AISI SUS304 Flap Barrier Turnstile Gate Access Control System

AISI SUS304 Flap Barrier Turnstile Gate Access Control System
AISI SUS304 Flap Barrier Turnstile Gate Access Control System AISI SUS304 Flap Barrier Turnstile Gate Access Control System

Large Image :  AISI SUS304 Flap Barrier Turnstile Gate Access Control System

Product Details:
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month

AISI SUS304 Flap Barrier Turnstile Gate Access Control System

Name: Oval Wing Gate Turnstile Dimensions: 1400*300*980mm
Channel Width: 550MM OR 600MM Wing Arm Material: 15MM Acrylic Wing Board/soft Wing Flaps Optional
Application: Scenic Spots, Parks, Playgrounds Housing Material: AISI SUS304
Power Voltage: AC220V±10V
High Light:

SUS304 Flap Barrier Turnstile


Flap Barrier Turnstile Access Control


Turnstile Gate Access Control System


Product Specifications of Oval Wing Gate Turnstile <TDH-Y305>

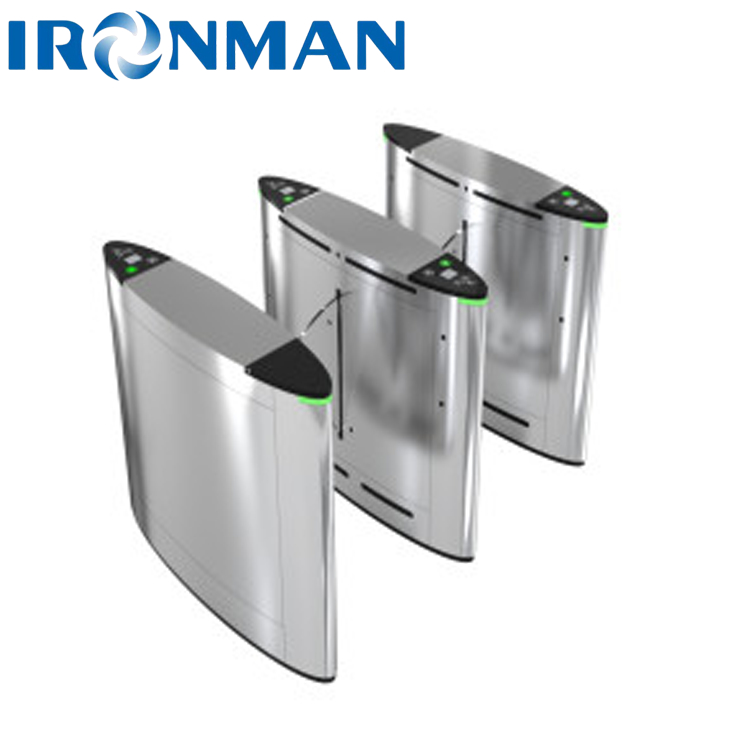

Picture of the product
Document Number:
Version A/0
Revision Time
Revised by
Product Parameters Dimensions 1400*300*980mm Housing Material: Housing:stainless steel 304 1.5MM
Top stainless steel 304 2.0MM
Wing Arm material: 15MM Acrylic wing board/soft wing flaps optional channel width 550MM OR 600MM
Product Drawing:
Technical Parameter ◆Housing Material:AISI SUS304
◆Internal structure: Steelframe structure/standard stainless steel shell
◆Power Voltage: AC220V±10V
◆Drive motor: DC brushless motor(24~36VDC)
◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product
◆Service life: 5,000,000 times
◆Infrared sensor: 4 to 6 pairs (can support up to 12 pairs of configuration)
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors
●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at one time.
●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel
Extension Function ▲ Passing Mode
△ Normal: normal pedestrian passing mode
△ Passing: automatic vehicle / electric vehicle / motorcycle passing mode
▲Voice broadcast, expandable voice module, and volume adjustment
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Product Introduction:

The wing gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience, and is an ideal management and drainage device for pedestrians with high frequency access. It is suitable for one-way or two-way control of people flow. It is an upgraded version of three roller gates and swing gates. The appearance is fashionable. Generous, fast speed. It has been widely used in airports, subway stations, stations, terminals, attractions, parks, student dormitories, and pedestrian walkways.

Wing gate shape: The appearance box can be divided into bridge type octagonal inclined wing gate, bridge type ship-shaped wing gate, bridge type trapezoidal wing gate, double-core wing gate. Wing gates can be divided into other materials such as soft wings and acrylic.
