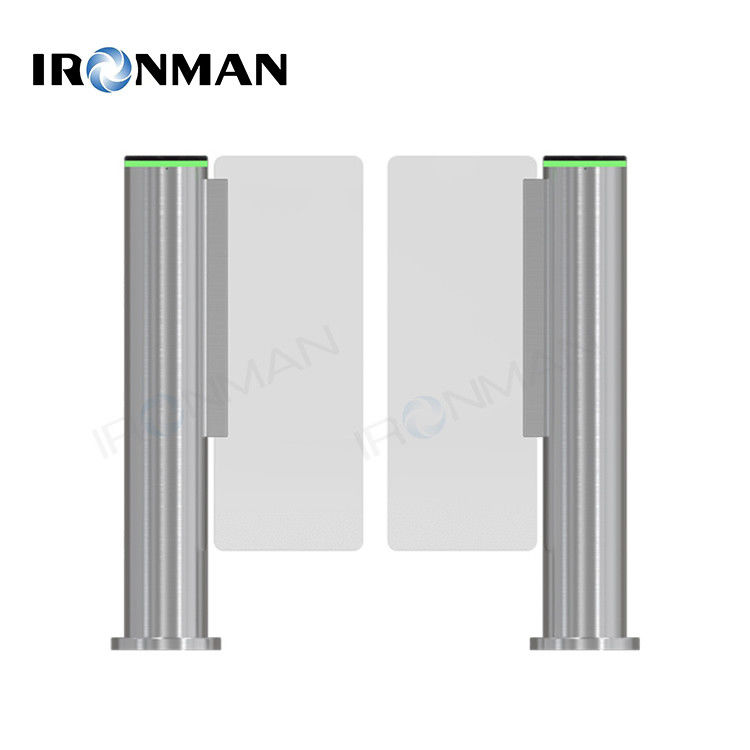

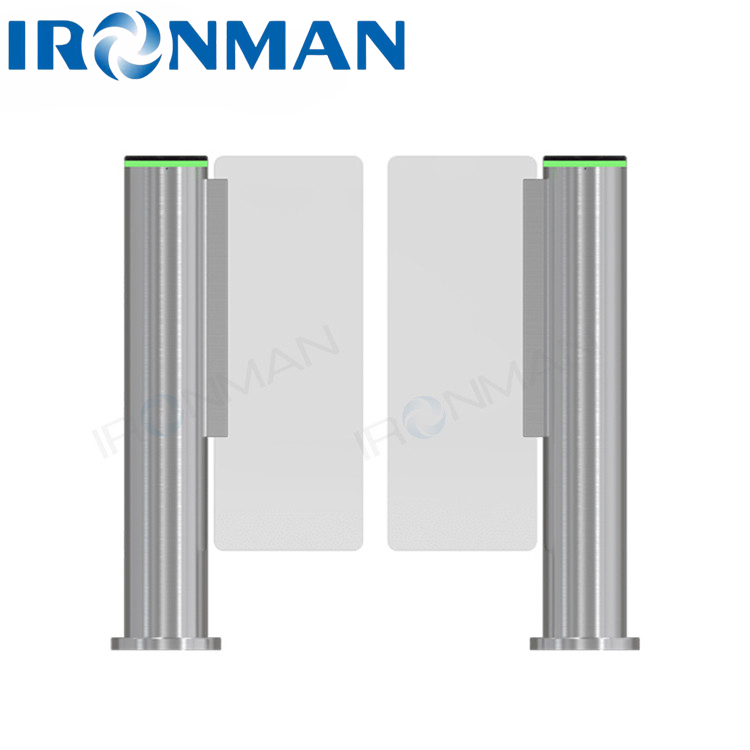

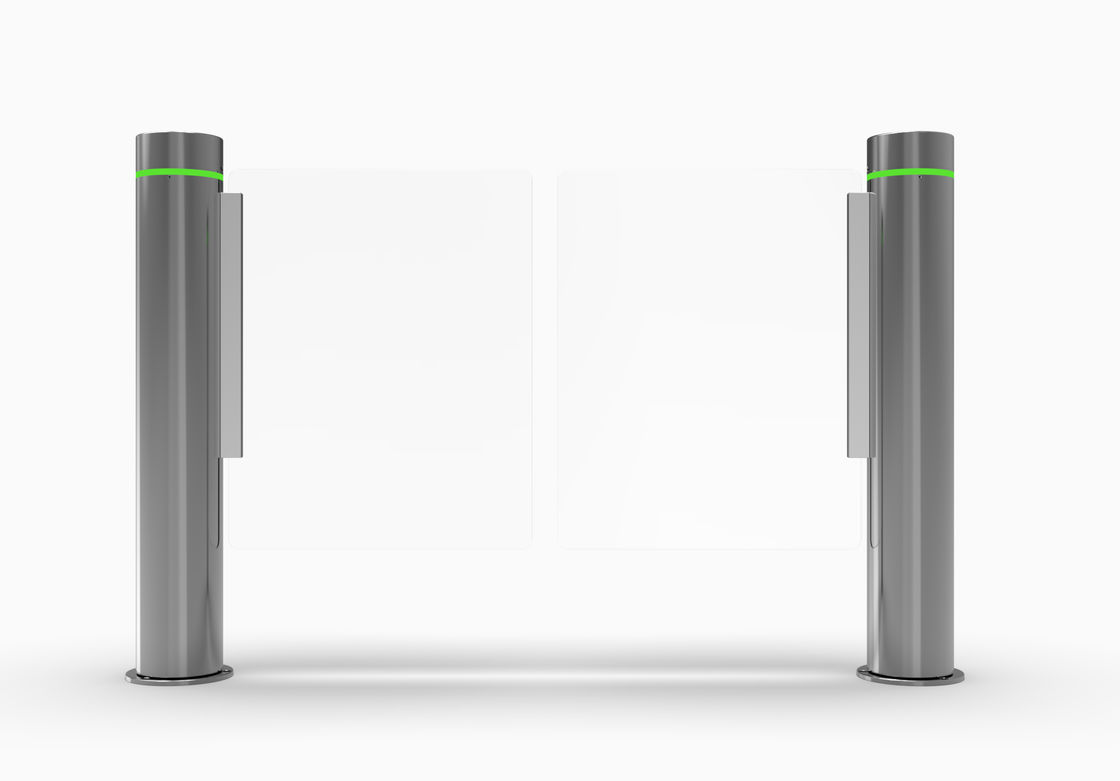

Cylindrical quick pass door

Cylindrical quick pass door
Cylindrical quick pass door

Large Image :  Cylindrical quick pass door

Product Details:
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-ST609
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month

Cylindrical quick pass door

Description
Product Name: Half Height Turnstile Gate Material: 304 Stainless Steel
Warranty: 12 Months Net Weight: 80kg
Dimension: 168*1060mm (mm) Power Supply: 50(10%more Or Less) HZ
Size: 980 *330 * 420 (mm) Type: Three Arm / Rail Turnstile
Application: Office Working Environment: Indoor/outdoor(shelter)
Weight: 45kg Transit Speed: 30 Persons/min
Passing Speed: 30-40 Persons/min Input: 100V~240V
Housing Material: 304 Stainless Steel Power Consumption: 100 Watts/24V
Communication Interface: Standard RS485 Interface Passage Width: 550mm
High Light:

Security Half Height Turnstile

,

Pedestrian Half Height Turnstile

,

Half Height Turnstile Gate

Access Control Stainless Steel Turnstile Gate Security Half Height Pedestrian Turnstile



Features:



l IC cards,ID cards as automatic identification system and achieve access attendance function.

l A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly.

l Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

l Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.

l Single or bi-directional function

l Automatic reset of barrier arms after each passage.

l Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.

l Adjustable time out delay



Technical Parameter

Passage Width ≤600mm
Passing Speed30 30 personal/min IC Card
Working Temperature -15℃~ 60℃
Size L1400×W200×H1000mm
IP Rating IP 65
