Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.Q801D
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Detail Information
Name: Pedestrian Full Height Turnstile Dimensions: SUS 304 Stainless Steel
Swing Arm Material: AC110~220V±10V Channel Width: 500~600 Mm
Working Environment Temperature: -30℃~70℃

Building Pedestrian Turnstile Gate


Full Height Pedestrian Turnstile Gate


Construction Site Security Turnstiles

Product Description

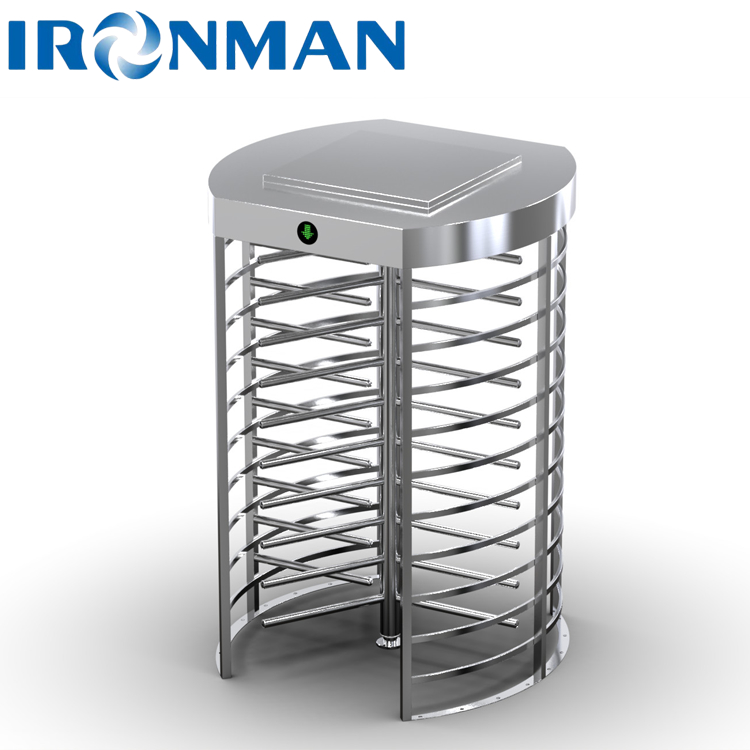

Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles


 Full height Turnstiles< IM.Q801D>Product Specifications
Product Parameters Dimensions:
Box Material: Box: Stainless steel SUS304 1.2mm
Rotary Bar: Stainless steel SUS304 2.0mm
Swing Arm Material: Stainless steel SUS304 Channel Width: 500~600MM
Technical Parameters ◆Chassis Material: Austenitic stainless steel SUS304
◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing;
◆Work Voltage: AC110V~220V±10V
◆Normal Work Life: Continuous opening and closing for more than 5 million times
◆Working Environment Temperature: -30℃~70℃
◆Relative Humidity: 0~90%(No condensation)
◆Communication Interface: Switching electrical signal, extensible RS232 serial port
◆Working Speed of the Gate: ≤20 persons/min(The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 5S(If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters Basic Functions ●Passing Indicator Function: The LED indicator board is installed in the eye-catching part of the housing frame to prompt pedestrains the gate's passing status annd direction.
●Anti-trepass function: when the card is invalid, no card is swiped or the passage is forbidden, pushing the bar focibly will be regarded as illegal entry, and the system will alarm and lock the brake rode automatically. (so that it could not be pushed)
●Access Control: The external port can be connected to a variety of biometric identification devices.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
Extensible Functions ▲Intelligent Linkage Alarm: Can be linked with other alarm monitoring equimpemnet;
▲Voice broadcast, expandable voice module, and volume adjustment.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage, swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles 0


Product Application


widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
