Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-Q801S
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Material: |
SUS304 Or Carbon Steel Powder Coating |
Product Name: |

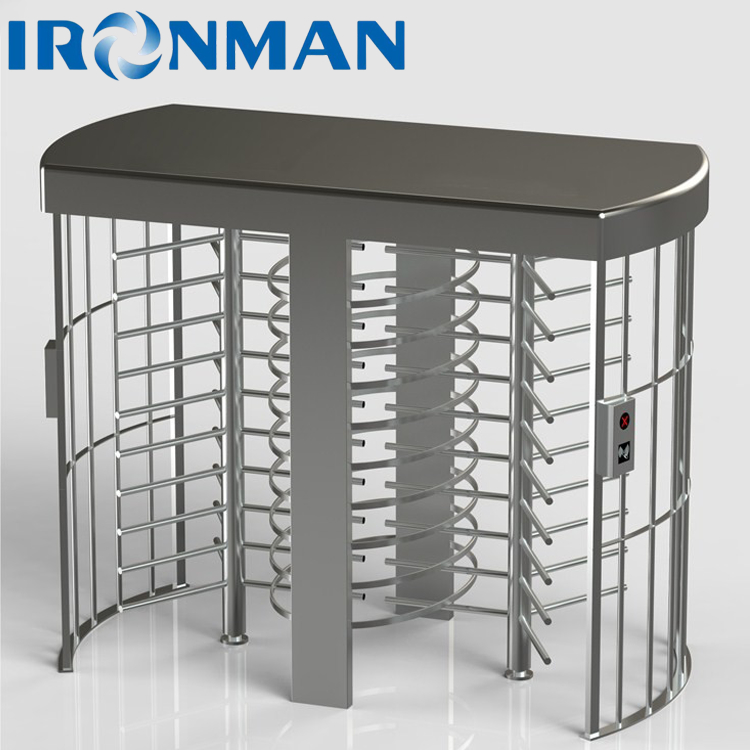

China High Quality Pedestrian Security Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
260kg |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Name: |
Full Height Sliding Pedestrian Barrier Gate Turnstile |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Certification: |
ISO,CE,RoHS |
Material: |
SUS304 Or Carbon Steel Powder Coating |
Product Name: |
China High Quality Pedestrian Security Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
260kg |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Name: |
Full Height Sliding Pedestrian Barrier Gate Turnstile |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Certification: |
ISO,CE,RoHS |
Product technical parameters
1. Overall dimensions: 2400 * 1460 * 2300 mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Power supply voltage: AC220V ± 10%, 50Hz;
4. Working environment temperature: - 30 ℃~+70 ℃;
Relative humidity: 95% relative humidity, non condensing;
5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
6. Driving current: ＞ 200mA;
7. Communication interface: RS485 electrical standard;
8. Length of gate pole: 500mm;
9. Channel width: 550-600mm;
10. Traffic speed: ≤ 30 persons/min;
11. Structure: frame structure/standard stainless steel shell;
12. Swing rod steering: support one-way and two-way (optional);
13. Working environment: indoor and outdoor.
