Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Model Number: TDH-Q808
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Certification: |
ISO,CE,RoHS |
Material: |
304 Stainless Steel,thickness Is No Less Than 1.3mm,SUS304 Or Carbon Steel Powder Coating |
Product Name: |
Factory Price Automatic Safe Rotation Full Height Turnstile Gate,DaoSafe RFID Full Height Turnstile Price,Full Height Turnstile,China High Quality Pedestrian Security Full Height Turnstile,Stainless Steel Single Passage Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
260kg |
Dimension: |
2210mm*1350mm*2300mm |
Warranty: |
1 Year |
Passing Speed: |
40 Persons/min |
Passage Width: |
650mm,<=600mm |
Arm Length: |
600mm(optional),600(mm),600mm~900mm |
Power Consumption: |
40W |
Color: |
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize |
Size: |
2450*1500*2300MM |
Type: |
Single Core & Double Core,automatic Tripod Turnstile,Full Height Turnstile |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Gross Weight: |
20kg,215kgs |
Certification: |
ISO,CE,RoHS |
Material: |
304 Stainless Steel,thickness Is No Less Than 1.3mm,SUS304 Or Carbon Steel Powder Coating |
Product Name: |
Factory Price Automatic Safe Rotation Full Height Turnstile Gate,DaoSafe RFID Full Height Turnstile Price,Full Height Turnstile,China High Quality Pedestrian Security Full Height Turnstile,Stainless Steel Single Passage Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
260kg |
Dimension: |
2210mm*1350mm*2300mm |
Warranty: |
1 Year |
Passing Speed: |
40 Persons/min |
Passage Width: |
650mm,<=600mm |
Arm Length: |
600mm(optional),600(mm),600mm~900mm |
Power Consumption: |
40W |
Color: |
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize |
Size: |
2450*1500*2300MM |
Type: |
Single Core & Double Core,automatic Tripod Turnstile,Full Height Turnstile |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Gross Weight: |
20kg,215kgs |

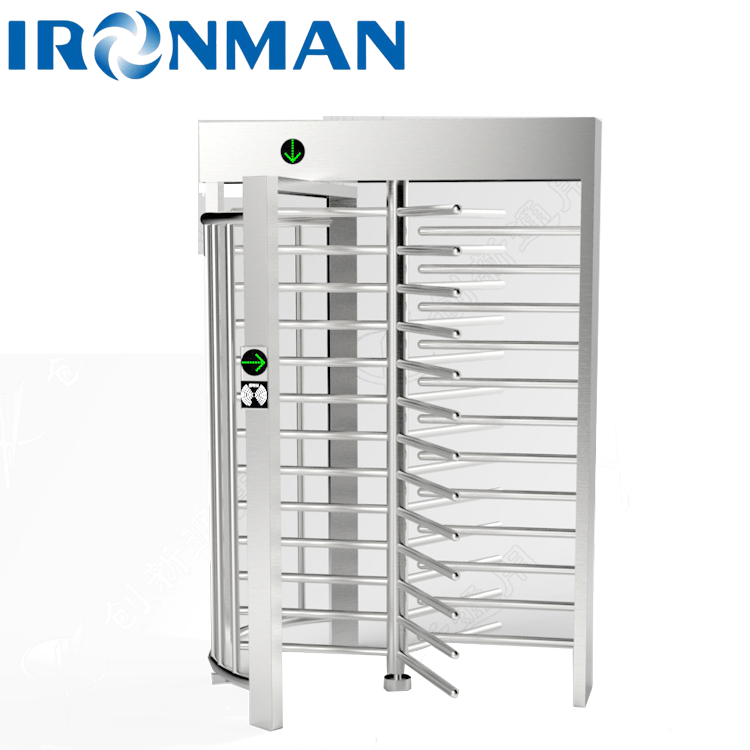

Single Lane Stainless Steel Turnstiles , Pedestrian Turnstile Gate Anti Backup Function
Product technical parameters
1. Boundary dimension: 1500 * 1500 * 2300 mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Power supply voltage: AC220V ± 10%, 50Hz;
4. Working environment temperature: - 30 ℃~+70 ℃;
Relative humidity: 95% relative humidity, non condensing;
5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
6. Driving current: ＞ 200mA;
7. Communication interface: RS485 electrical standard;
8. Length of gate pole: 500mm;
9. Channel width: 550-600mm;
10. Traffic speed: ≤ 30 persons/min;
11. Structure: frame structure/standard stainless steel shell;
12. Swing rod steering: support one-way and two-way (optional);
13. Working environment: indoor and outdoor.
Occasion Application
Full-height turnstile is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in some high security places, such as prison, stadium, parking system area , and so on…
