Tripod Turnstile Gate
>

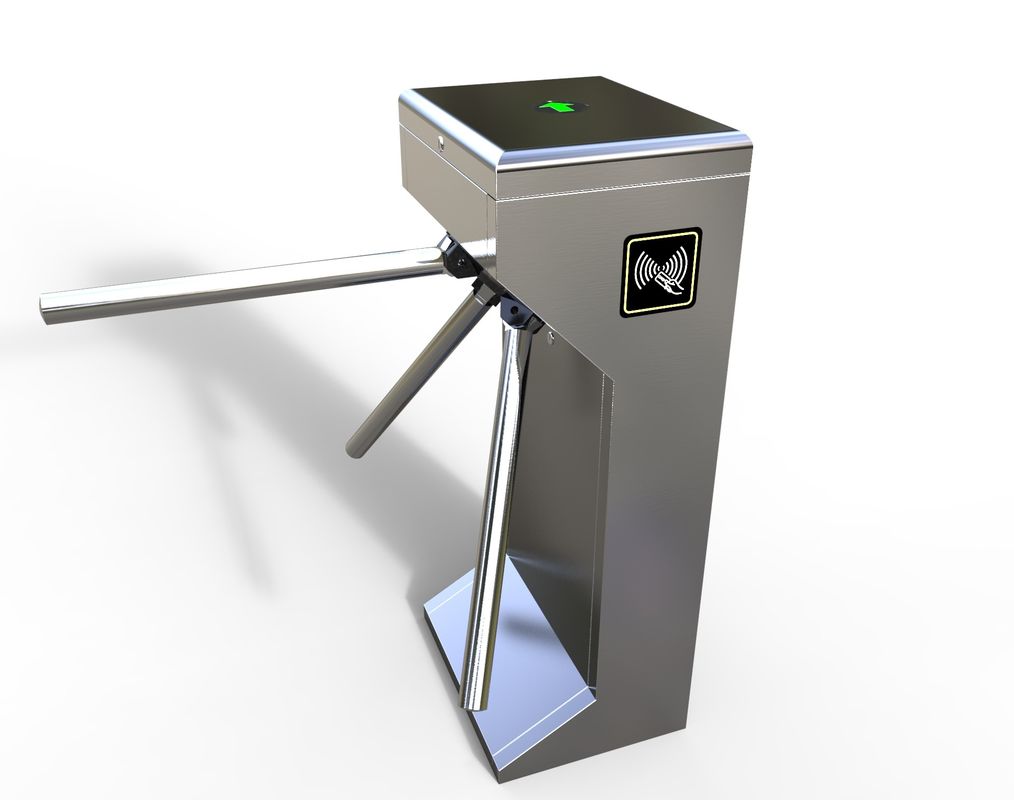

304 Stainless Steel Molded Tripod Turnstile Mechanism Pedestrian Passage Gate

304 Stainless Steel Molded Tripod Turnstile Mechanism Pedestrian Passage Gate

Brand Name: Portevix
Model Number: PX-S101
MOQ: 1pc
Price: Negotiation
Packaging Details: carton packing
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE ,FCC, RoHS, IP54, ISO9001
Name:
Tripod Turstile
Material:
SUS304 Stainless Steel
Dimension Of Housing:
AC110~220V±10V
Net Weight:
50kg
Working Voltage Of Motor:
DC12V
Passing Speed:
35 Persons/Min
Working Environment:
Indoor/Outdoor
Communication Interface:
RS232, RS485, TCP/IP
Supply Ability:
2000 pc per/month
Highlight:

Full Auto Tripod Turnstile Gate

,

Tripod Turnstile Gate Low Noise

,

Exhibition Tripod Turnstile Manufacturers

Product Description

304 Stainless Steel Molded Tripod Turnstile Mechanism Pedestrian Passage Gate

304 Stainless Steel Molded Tripod Turnstile Mechanism Pedestrian Passage Gate













































Turnstile Gate Functions and Features

1. 304 stainless steel: Anti-rust, wear-resistant, high temperature resistant, and corrosion resistance

2. Molded Tripod Turnstile Mechanism: Die-cast aluminum integral molding, special paving treatment

3. Pedestrian passage gate main board: Dynamic arrow lights guide traffic, Dry contact signal, Support fire signal access, Memory mode



Turnstile Technical Parameters

Model IM.S101A
Material of Housing 304 Stainless Steel
Dimension of Housing 420*330*980mm
Length of Pole(out of housing) 550mm
Net Weight 35kg
Input Voltage 220VAC±10%, 110VAC±10%
Motor Power 50W



Tripod Turnstile Technical Data:

1. Working Temperature: -25℃~+55℃

2. Input Voltage: 220VAC±10%, 110VAC±10%

3. Working Voltage of Motor: DC12V

4. Humidity: ≤95%, no condensation

5. Material of Housing: standard 304 stainless steel(customizable)

6. Length of Pole (out of housing): 495mm

7. Max Load-bearing of Pole: 80kg

8. Driving Force of Pole: 3kg



Projects

304 Stainless Steel Molded Tripod Turnstile Mechanism Pedestrian Passage Gate



Support and Services:



Tripod Turnstile Support and Service

IM.S101A tripod turnstile is a reliable and efficient entry control system designed to provide secure access for personnel. It is an ideal solution for areas where access control and security is essential.

Technical Support

We provide 24/7 technical support for our tripod turnstile systems. Our technical support team is available to answer any questions and provide assistance with installation, troubleshooting, and maintenance. We also offer remote access support, allowing us to diagnose and resolve issues quickly and efficiently.

Service

We offer a range of services for our tripod turnstile systems, including installation, maintenance, and repair. Our team is experienced in all aspects of the system and can provide quick and efficient service. We also offer emergency repair services, ensuring that your system is always operating at peak performance.
