|Name:||Magnetic Tripod Turnstile||Application:||Features: 1. The Turnstile Provides Control Access Smoothly And Effectively By Basic Operation,and Also Prevent Illegal In And Out.The Machine Is Well In Design,rustproof,durable And Can Resist External Destroy. 2. Turnstile Offer A Compact, Cost-effective|
|Power Supply Voltage:||AC220V±10V||Brake Rod Material:||Stainless Steel SUS304|
|Channel Width:||550~600MM||Function:||Anti-interference , Anti-collision Function|
Tripod Barriers For Access Control,

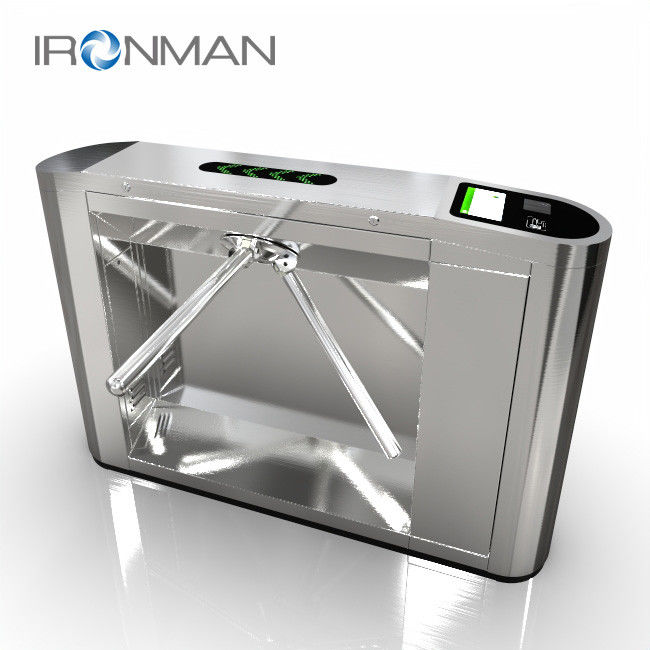

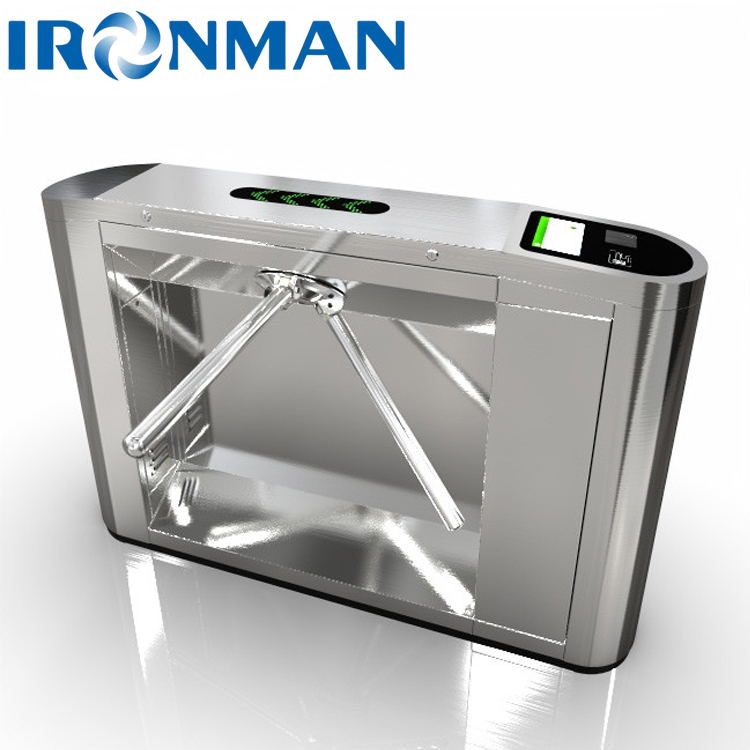

|Ticketing Tripod Turnstile Gate <TDH-PWS903> Product Specifications|
|Product Parameters||Dimensions:||Length 1400*Width 250*Height 980mm||Box Material:||Box: Stainless Steel SUS304 1.5mm
Upper Cover: Stainless Steel SUS304 2.0mm
|Stainless Steel Sus304; Optional Black Or Red Brake Rod Cover||Channel Width:||550~600MM|
|Technical Parameter||◆Case material: case drawing SUS304
◆Service life: more than 5 million times of continuous opening and closing
◆Input voltage: AC220V ± 10V, 50Hz ~ 60Hz
◆Communication interface: RS232 serial port
◆Communication protocol: Modbus Protocol
◆Drive motor: DC brushless motor (24 ~ 36VDC)
◆Working environment temperature: - 35 ℃ ~ 75 ℃
◆Relative humidity: 0 ~ 90% (no condensation)
◆Gate operating speed: 30 ~ 50 people / min (memory mode can be turned on)
◆Passage time: card swiping passage time: 10s (if no one passes in 10s: the gate closes automatically, and the time can be adjusted according to needs)
|Function Parameters||Basic Function||●Traffic indication function: an LED indicator board is installed at an eye-catching position of the housing frame to remind pedestrians of the traffic status and direction of the gate.|
|●Anti illegal entry function: when card swiping is invalid, card swiping is not performed or passage is prohibited, forced push rod will be considered as illegal entry, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).|
|●Intelligent linkage alarm: including illegal intrusion, reverse passage and other alarms, it can be linked with other alarm monitoring equipment in the form of sound and light. If flash alarm is required, it is necessary to add a luminous alarm on the housing frame.|
|●Automatic lever rotation function: when the pedestrian swipes the card effectively, the brake lever will automatically rotate to a certain angle in the forward direction to prompt the pedestrian to pass. After gently pushing the brake lever, the brake lever will automatically rotate following the passage of people, and the rotation speed will be automatically adjusted according to the pedestrian's passing speed.|
|●Automatic pole lowering function: when the power is off, the brake pole that plays a blocking role will automatically fall, which is convenient for evacuating the crowd and meets the fire protection requirements.|
|●Automatic lever loading function: after the lever is automatically lowered after power failure, the system will automatically rotate the brake lever slowly for several weeks to restore the brake lever to the blocking position and give an alarm.|
|●Anti collision function: when the brake lever is locked, it cannot be pushed by external force, and can withstand the impact force within the safe range.|
|●Anti reverse passage function: after the brake lever has been rotated by a certain angle during passage, forcibly reverse rotating the brake lever will be regarded as reverse passage, and the system will automatically alarm and lock the brake lever.|
|●Fault detection: the control board can support fault type detection, assist in analyzing fault causes and handling fault abnormalities.|
|●Anti interference: it can prevent the abnormal gate caused by electromagnetic and other external factors|
|Expanding Function||▲Voice broadcasting, expandable voice module, and volume adjustment|
|▲Opening / closing delay: set the delayed opening time after the gate machine receives the opening signal / set the delayed closing time after the pedestrian passes through. The default is 0 seconds|
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.
2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.
The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security
