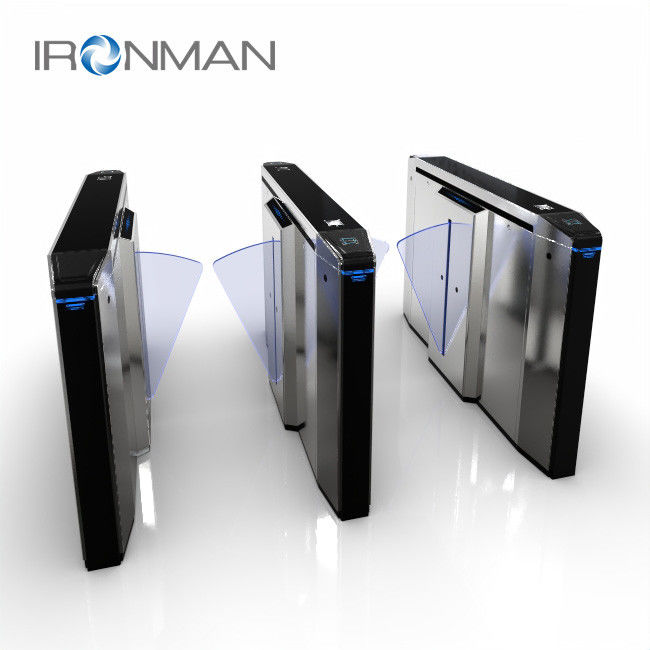

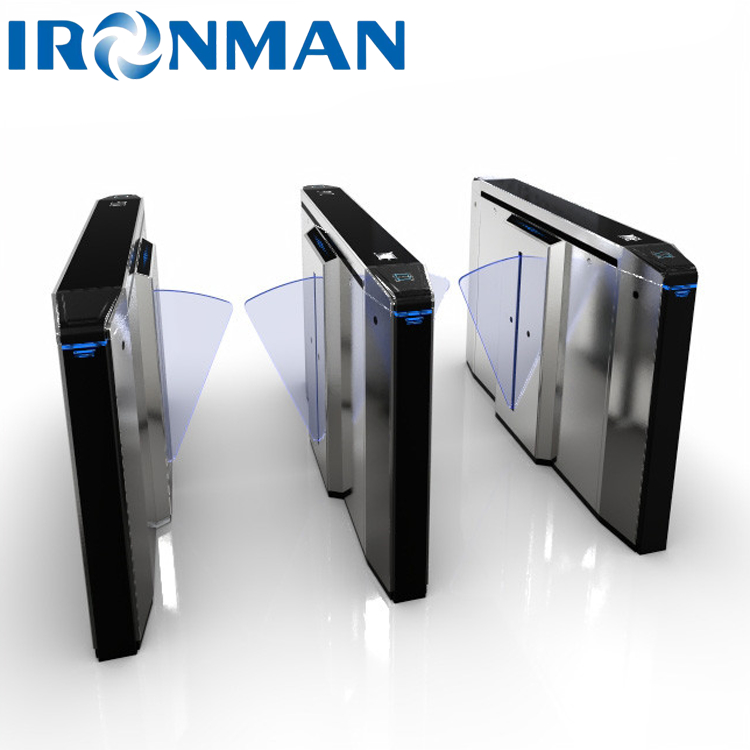

Anti Collision Stainless Steel SUS304 Flap Barrier Turnstile for Train Station Security Wing Gate Turnstile Access Control

Security Turnstile Barrier Gate Sliding — Waist-high intelligent electric entrance control designed for reliable pedestrian access management in high-traffic environments.

• Housing Material: AISI SUS304
• Internal Structure: Standard stainless steel shell; outdoor plastic module in PC material (10-year warranty)
• Power Voltage: AC220V ±10V
• Drive Motor: DC brushless motor (24–36 VDC)
• Movement Structure: Full-height direct-drive movement, fixed with upper and lower screws for firm load bearing; high-precision movement with direct motor drive for higher precision, faster opening and closing speed, and longer service life (patented product)
• Service Life: 5,000,000 cycles
• Infrared Sensor: 3 pairs (supports 5-pair configuration)
• Working Temperature: −35 °C to 75 °C
• Relative Humidity: 0–90% (non-condensing)
• Communication Interface: RS232 serial port
• Communication Protocol: MODBUS protocol
• Turnstile Working Speed: 45–50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be enabled)
• Passing Time: Card swipe travel time 10 s (if no one passes within 10 s, the gate closes automatically; time adjustable as needed)

• Alarm Function: Sound and light alarm capability
• Anti-Interference: Limits gate abnormalities caused by electromagnetic and other external factors
• Traffic Mode Setting: One-way, two-way, free traffic, and other modes configurable via buttons on the main control panel
• Anti-Tailing: Prevents unauthorized passage by multiple people at the same time
• Anti-Pinch Function: When the gate is closing, it stops closing upon detecting an anti-pinch signal
• Automatic Reset: After opening, if the user does not pass within the specified time, the system automatically cancels that passage permission; default is 10 seconds, adjustable via switch
• Access Control: External port connects to a variety of biometric devices
• Power-Off Opening: Opens on power failure; opening direction configurable
• Fault Detection: Control board supports fault-type detection to assist in analyzing and handling faults and abnormalities
• Passing Indication: Passing status indicator included; alarm function for exceeding stay time in the channel can also be set
