Product Details
Place of Origin: China
Brand Name: RONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.PWY906
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Speed Gate Turnstile |
Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Control Input: |
Dry Contact/relay Signal |
Name: |
Speed Gate Turnstile |
Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Control Input: |
Dry Contact/relay Signal |

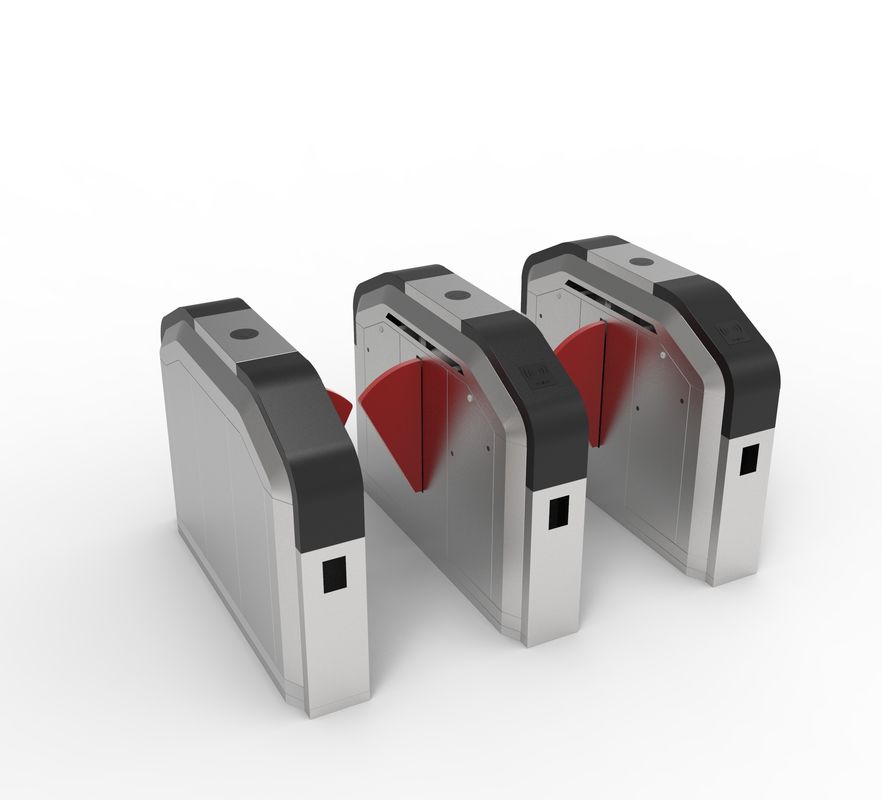

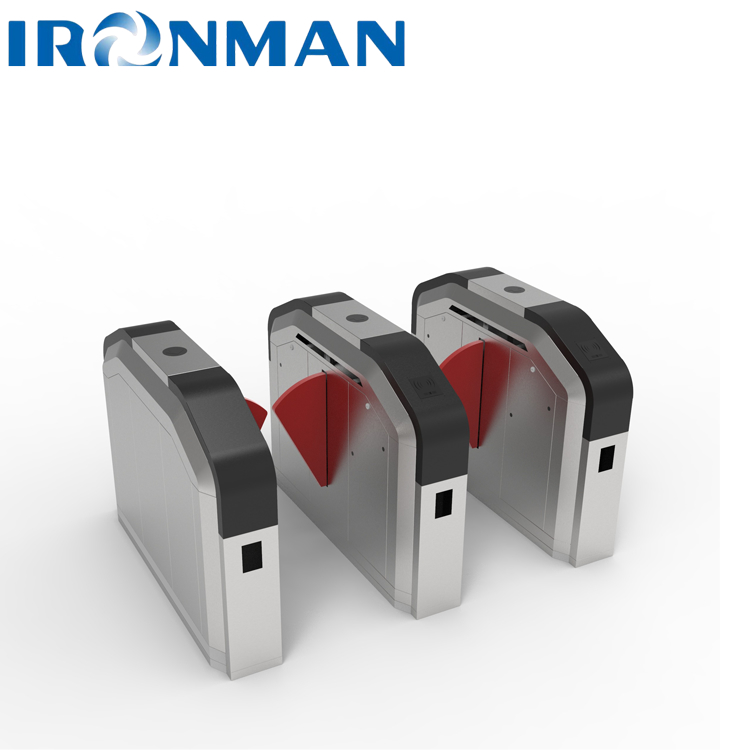

Speed Gate Turnstile 10mm Acrylic Swing Door For Hospitals / Hotels
The Flap Barrier Turnstile is a state-of-the-art outdoor turnstile that combines advanced technology, high-speed operation, and durability to provide the ultimate solution for access control and security. Made with high-quality 304 stainless steel, this outdoor flap barrier is built to withstand harsh weather conditions and heavy usage, making it the perfect choice for a variety of applications.
The Flap Barrier Turnstile is made from 304 stainless steel, making it resistant to corrosion and ensuring its longevity. With a flap opening speed of 0.3-0.6 seconds, this turnstile gate allows for smooth and efficient entry and exit. It requires a power supply of only 50W, making it energy-efficient and cost-effective.
The Flap Barrier Turnstile is suitable for a variety of settings, including metro stations, schools, apartments, and offices. Its versatile design and high-speed operation make it the perfect choice for any location that requires efficient access control and security.
The Flap Barrier Turnstile is bi-directional, allowing for both entry and exit through the same gate. This makes it convenient for users and improves the flow of traffic, especially in high-traffic areas.
Overall, the Flap Barrier Turnstile is the perfect choice for any location that requires efficient access control and security. Its high-speed operation, durable construction, and versatile design make it a reliable and cost-effective solution for a wide range of applications. Upgrade your access control system with the Flap Barrier Turnstile and experience the ultimate in security and convenience.
Technical Parmeters
Product Specifications of Luxury Tickeing Wing Gate Turnstile <IM.PWY906> |
||||
| Product Parameters | Dimensions | 1500*300*1100MM(Support customization) | Housing Material: | stainless steel 304 1.5MM |
| Wing Arm Material: | 15MM Acrylic wing board/soft wing flaps optional Can support double flying wings |
Channel Width | 550MM or 600MM support 900MM double wing |
|
| Technical Parameter | ◆Housing Material: SUS304 stainless steel ◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends; ◆Power Voltage: AC110~220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.； ◆Service life: 5,000,000 times ◆Infrared sensor: 8 pairs (can support more than 8 pairs of configuration) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application: Office / School / Park / Supermarket / Subway
