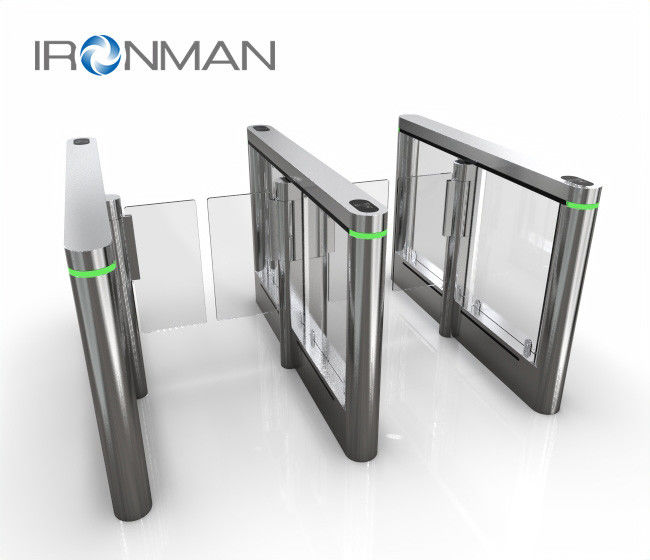

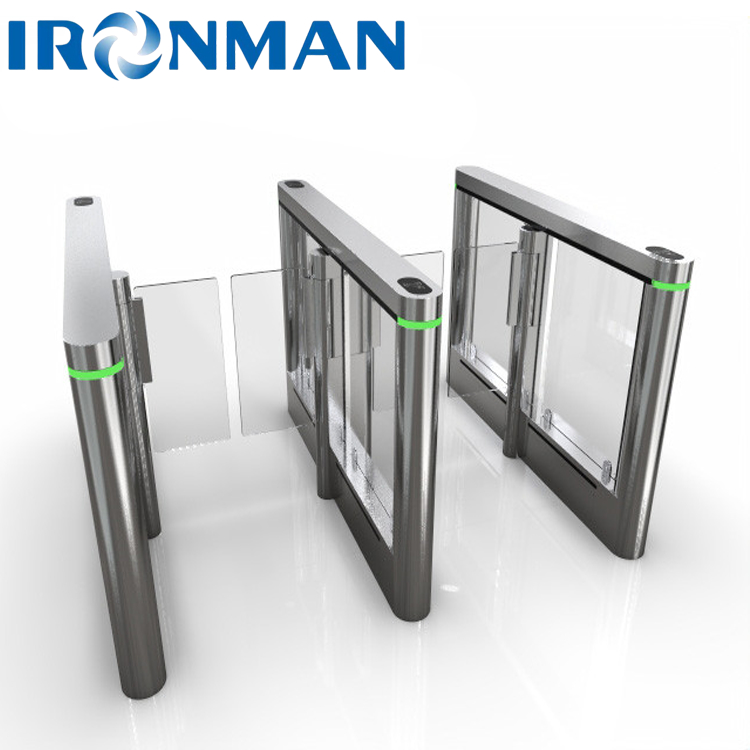

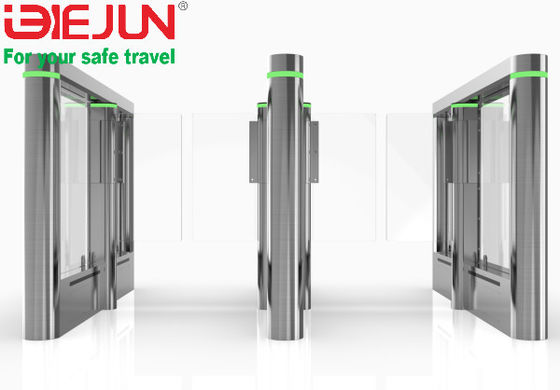

Door Access Speed Gate Turnstile SUS304 Box With ID / IC Card

Door Access Speed Gate Turnstile SUS304 Box With ID / IC Card
Door Access Speed Gate Turnstile SUS304 Box With ID / IC Card

Large Image :  Door Access Speed Gate Turnstile SUS304 Box With ID / IC Card

Product Details:
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-ST602DB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month

Door Access Speed Gate Turnstile SUS304 Box With ID / IC Card

Features: Fast Induction Pass Name: Office Barrier Gate
Power Voltage: AC220V±10V Communication Interface: RS232 Serial Port
Housing Material: AISI SUS304 Service Life: 5,000,000 Times
Application:: Office / School / Park / Supermarket / Subway Basic Function: Alarm Function
High Light:

Door Access Speed Gate Turnstile


Speed Gate Turnstile SUS304


AC220V Speedgate Turnstile

Access Control Automatic Swing Barrier Turnstile With ID / IC Card


Arc Speed Gate Turnstile <TDH-ST602> Product Specifications
  Document Number:
Edition: A/0
Revision Time:
Revised By:
Product Parameters Dimensions: Length 1500*Width 150*Height 1000mm Box Material: Box: Stainless Steel SUS304 Foot 1.5mm
Upper Cover: Stainless Steel SUS304 Foot 1.5mm
Swing Arm Material: A:10mm Acrylic Swing Door
B:10mm Tempered Glass
Channel Width: Open Type; Recommended ≤1200mm
Technical Parameter Box material: austenitic stainless steel SUS304
Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
Power supply voltage: AC220V±10V
Drive motor: servo motor
Movement structure: Planetary metal gear reducer is high-speed, precise, silent, and averagely trouble-free
Service life: 12 million times of continuous opening and closing
Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
Opening method: RS485/RS232/IO
EMC index: antistatic level 3, air discharge 15KV
Lightning protection: 2KV
Drive motor: servo motor, high-precision clutch movement
Working environment: -20℃~75
Relative humidity: 090% (no condensation)
Open speed: <0.5S (adjustable)
Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameter Basic Function ●Voice broadcast: it has the function of entering and opening the gate / exiting the gate / breaking into the voice / trailing voice / stop voice broadcasting function
●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch off after power off, and can set the switch opening direction
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set
Expanding Function ▲Passing mode
Normal: Normal passing mode
Passing: automatic car/electric car/motorcycle passing mode
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
Disabled by default: card swiping in the channel (induction infrared area) is invalid
Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
Normally open mode: the gate remains open;
Normally closed mode: the gate remains closed
▲System language function
Chinese: The system can set the Chinese interface
English: The system can set the English interface
▲Passage Mode
Bidirectional passage,swiping card bi-directionally for people flow.
Bidirectional free passage, no credit card verification is required.
Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
Passing is prohibited,Bidirectional card swiping is invalid, and the speed gate turnstile enters the locked state


Product Application

widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
