Product Details
Place of Origin: China
Brand Name: Ironman
Certification: CE; FCC
Model Number: IM.ST606
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Security Turnstiles |
Housing Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC110~220V±10V |
Service Life: |
8,000,000 Times |
Communication Interface: |
RS232 Serial Port |
Basic Function: |
Alarm Function |
Application: |
Schools / Hospitals |
Dimensions: |
Length 1500*Width 120*Height 980mm |
Name: |
Security Turnstiles |
Housing Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC110~220V±10V |
Service Life: |
8,000,000 Times |
Communication Interface: |
RS232 Serial Port |
Basic Function: |
Alarm Function |
Application: |
Schools / Hospitals |
Dimensions: |
Length 1500*Width 120*Height 980mm |

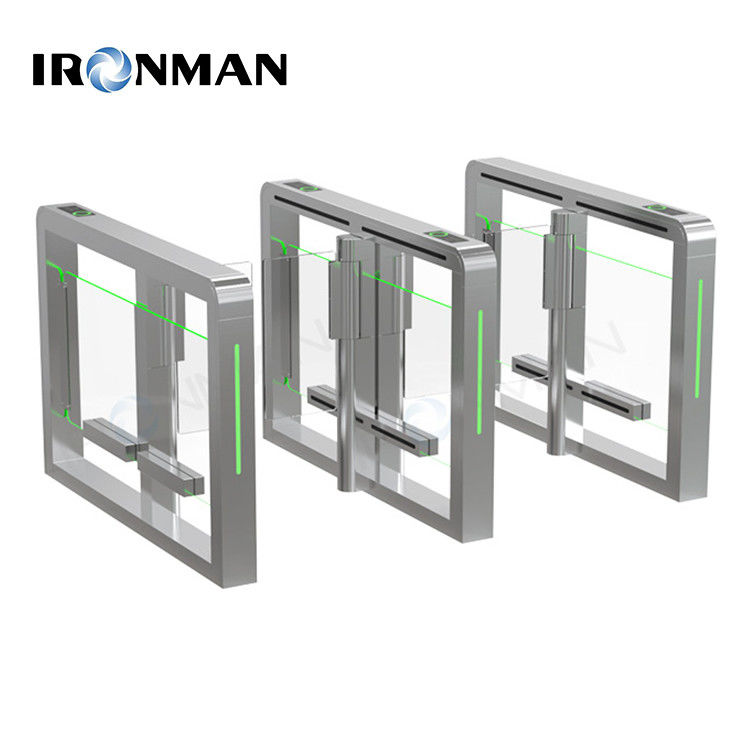

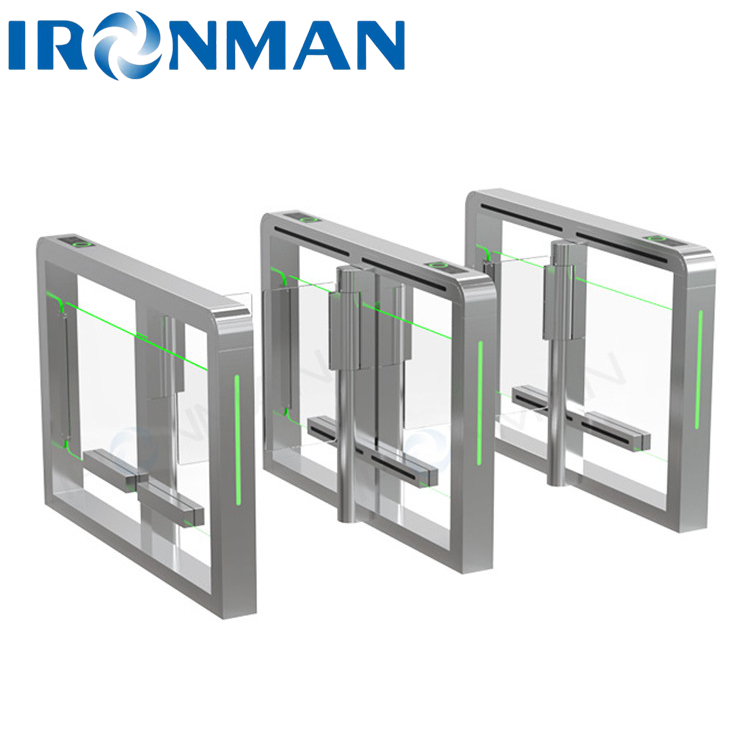

Slim Swing Gate Turnstile 304 Stainless Steel Turnstile Compact Electromechanical Design
| Speed Gate Turnstile <IM.ST606> Product Specifications | ||||
| Product Parameters | Dimensions: | Length 14500*Width 120*Height 980mm | Box Material: | Stainless Steel 304,sheet metal thickness 1.5mm |
| Swing Arm Material: | 10mm Acrylic Swing Door | Channel Width: | Recommended ≤1000mm | |
| Technical Parameter | 1,Dimensions(Customization Accepted):length 1500* width 120* height 980mm； 2,Material:Stainless Steel 304,sheet metal thickness 1.5mm； 3,Power Supply Voltage:AC110~220V±10%,50Hz,Drive current＞200mA； 4,Drive Motor:24V Brushless Motor,Infrared Detection Sensor:8 pairs； 5,High Precision Clutch Movement,MCBF:8 million times； 6,Relative Humidity:Relative humidity ≤ 95%,Non-condensation； 7,Input Interface: Dry Contact; 12V level signal or 12V pulse signal with pulse width >100ms; 8,Communication interface: RS485 electrical standard； 9,Baffle Arm Material:Acrylic/tempered glass； 10,Baffle Arm Length:≤475mm,Channel Width :≤1000mm； 11,Traffic Speed: ≤ 45 people/min； 12,Passing Direction:supports one-way and two-way (optional); 13,Working Environment: indoor/outdoor ; Working temperature:－30℃～+70℃； | |||
| Technical Parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board | ||||
| ●Anti-trailing: prevent the non-permissible situation of too many people at one time. | ||||
| ●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch on after power off | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode | |||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲ Swipe the card in the channel △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. | ||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing | ||||
| ▲Fire linkage △Normally open mode: the gate remains open △ Normally closed mode: the gate remains closed | ||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. | ||||
Dimension Drawing
Application:
Suitable for indoor pedestrian passage places;
hospitals
enterprises and institutions
government halls
sports venues
office buildings
hotels
residential quarters
high-end factory parks
higher schools
convention and exhibition centers;
Speed Gate Turnstile: IRONMAN IM.ST606
IRONMAN IM.ST606 Speed Gate Turnstile is an ideal access control solution for commercial and office building security. With its sleek design, the turnstile has a low profile and easily blends into any building interior and provides convenient access control. The compact size of 1500mm*120mm*980mm is perfect for limited spaces and can be operated with a frequency of 50/60Hz and a low power consumption . The fast passage width ensures that the turnstile can be used by large groups of people, making it a great choice for high traffic areas. The turnstile is also equipped with a reliable RS485 communication interface for easy integration with other access control systems.
IRONMAN IM.ST606 Speed Gate Turnstile can be used for a variety of applications in office buildings and commercial spaces. By providing a secure and efficient access control solution, it can help make office building security more efficient and reduce long wait times. The easy installation and integration with other access control and surveillance systems makes it ideal for smart life applications in commercial and office buildings.
