Supermarket / Station Swing Gate Turnstile DC24V Double Direction High Speed Gate

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Model Number: TDH-ST608DC

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Station Swing Gate Turnstile

,

Swing Gate Turnstile DC24V

,

Double Direction High Speed Gate

Name:
Facial Recognition Turnstile
Housing Material:
AISI SUS304
Power Voltage:
AC220V±10V
Service Life:
5,000,000 Times
Communication Interface:
RS232 Serial Port
Basic Function:
Alarm Function
Name:
Facial Recognition Turnstile
Housing Material:
AISI SUS304
Power Voltage:
AC220V±10V
Service Life:
5,000,000 Times
Communication Interface:
RS232 Serial Port
Basic Function:
Alarm Function
Description

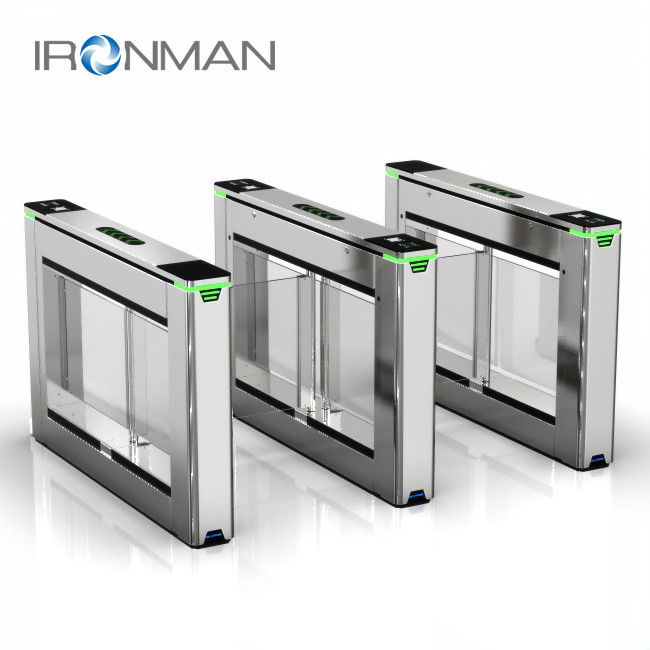

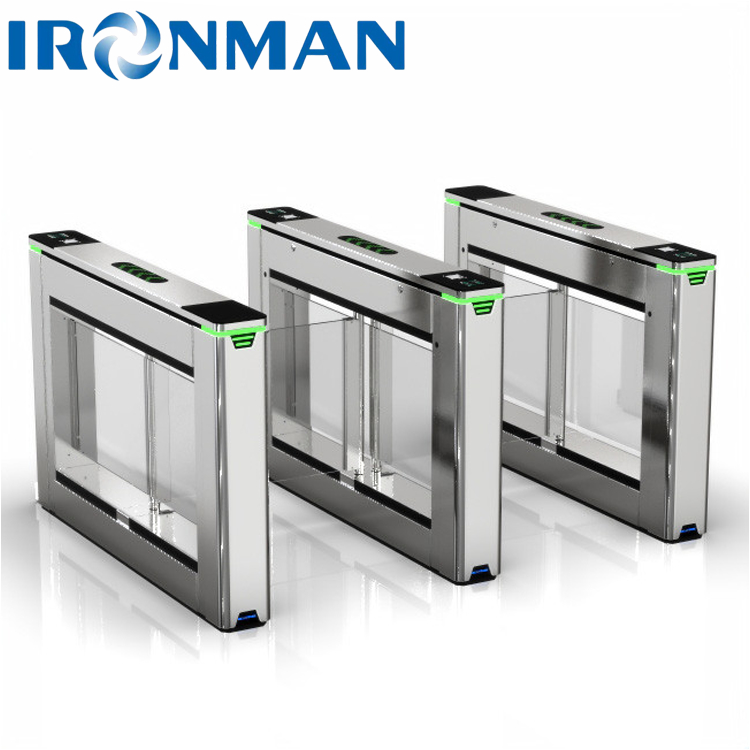

Supermarket / Station Swing Gate Turnstile DC24V Double Direction High Speed Gate
Arc Speed Gate Turnstile <TDH-ST608> Product Specifications
Product Parameters Dimensions: Length 1500*Width 200*Height 980mm Box Material: Box: Stainless Steel SUS304 Foot 1.5mm
Upper Cover: Stainless Steel SUS304 Foot 1.5mm
Swing Arm Material: A:10mm Acrylic Swing Door
B:10mm Tempered Glass
Channel Width: ≤1100mm
Place: Suitable for indoor pedestrian passage places; such as: office buildings/hotels/residential quarters/high-end factory parks/higher schools/hospitals/enterprises and institutions/government halls/sports venues/convention and exhibition centers;
Technical Parameter ◆Box material: austenitic stainless steel SUS304
◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
◆Power supply voltage: AC220V±10V
◆Drive motor: servo motor
◆Movement structure: Planetary metal gear reducer is high-speed, precise, silent, and averagely trouble-free
◆Service life: 12 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Opening method: RS485/RS232/IO
◆EMC index: antistatic level 3, air discharge 15KV
◆Lightning protection: 2KV
◆Drive motor: servo motor, high-precision clutch movement
◆Working environment: -20℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Open speed: <0.5S (adjustable)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Technical Parameter Basic Function ●Voice broadcast: it has the function of entering and opening the gate / exiting the gate / breaking into the voice / trailing voice / stop voice broadcasting function
●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch off after power off, and can set the switch opening direction
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set

Expanding Function ▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
