Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-ST609
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Features: |
Fast Induction Pass，Small Footprint And Powerful Control Panel |
Name: |
Office Barrier Gate |
Housing Material: |
AISI SUS304 |
Communication Interface: |
RS232 Serial Port |
Power Voltage: |
AC220V±10V |
Basic Function: |
Alarm Function |
Service Life: |
5,000,000 Times |
Application: |
Higher Schools / Hospitals |
Features: |
Fast Induction Pass，Small Footprint And Powerful Control Panel |
Name: |
Office Barrier Gate |
Housing Material: |
AISI SUS304 |
Communication Interface: |
RS232 Serial Port |
Power Voltage: |
AC220V±10V |
Basic Function: |
Alarm Function |
Service Life: |
5,000,000 Times |
Application: |
Higher Schools / Hospitals |

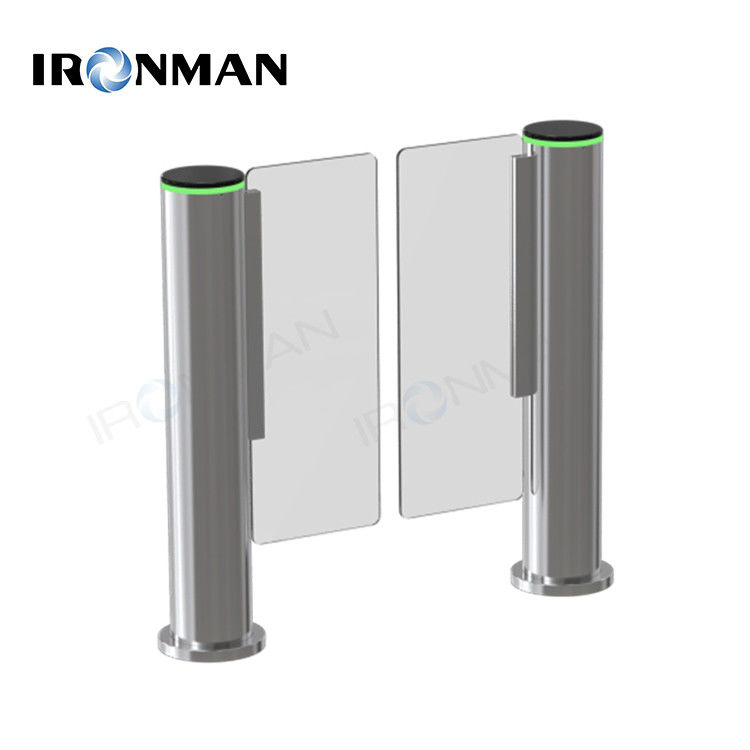

304 Stainless Steel Swing Turnstile Gate 0.2s Opening Closing Speed
| Column Type Servo Speed Gate Turnstile <TDH-ST609> Product Specifications | ||||
| Product Parameters | Dimensions: | φ168*1060MM | Box Material: | Cylinder: Stainless Steel SUS304 Foot 2.0mm |
| Swing Arm Material: | A:10mm Acrylic Swing Door B:10mm Tempered Glass |
Channel Width: | Open Type | |
| Technical Parameter | ◆Box material: austenitic stainless steel SUS304 ◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing ◆Power supply voltage: AC220V±10V ◆Drive motor: servo motor ◆Movement structure: Planetary metal gear reducer is high-speed, precise, silent, and averagely trouble-free ◆Service life: 12 million times of continuous opening and closing ◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration) ◆Opening method: RS485/RS232/IO ◆EMC index: antistatic level 3, air discharge 15KV ◆Lightning protection: 2KV ◆Drive motor: servo motor, high-precision clutch movement ◆Working environment: -20℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Open speed: <0.5S (adjustable) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Technical Parameter | Basic Function | ●Voice broadcast: it has the function of entering and opening the gate / exiting the gate / breaking into the voice / trailing voice / stop voice broadcasting function | ||
| ●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch off after power off, and can set the switch opening direction | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode |
|||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. △Passing is prohibited,Bidirectional card swiping is invalid, and the speed gate turnstile enters the locked state |
||||
Application:
Suitable for indoor pedestrian passage places;
higher schools
hospitals
enterprises and institutions
government halls
office buildings
hotels
residential quarters
high-end factory parks
sports venues
convention and exhibition centers;
