Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TJ-LBST01
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Entrance Access Control System |
Application: |
Office Buildings / Hotels |
Basic Function: |
Anti-interference |
Lightning Protection: |
2KV |
Supply Voltage: |
AC220V±10V |
Drive Motor: |
Servo Motor |
Name: |
Entrance Access Control System |
Application: |
Office Buildings / Hotels |
Basic Function: |
Anti-interference |
Lightning Protection: |
2KV |
Supply Voltage: |
AC220V±10V |
Drive Motor: |
Servo Motor |

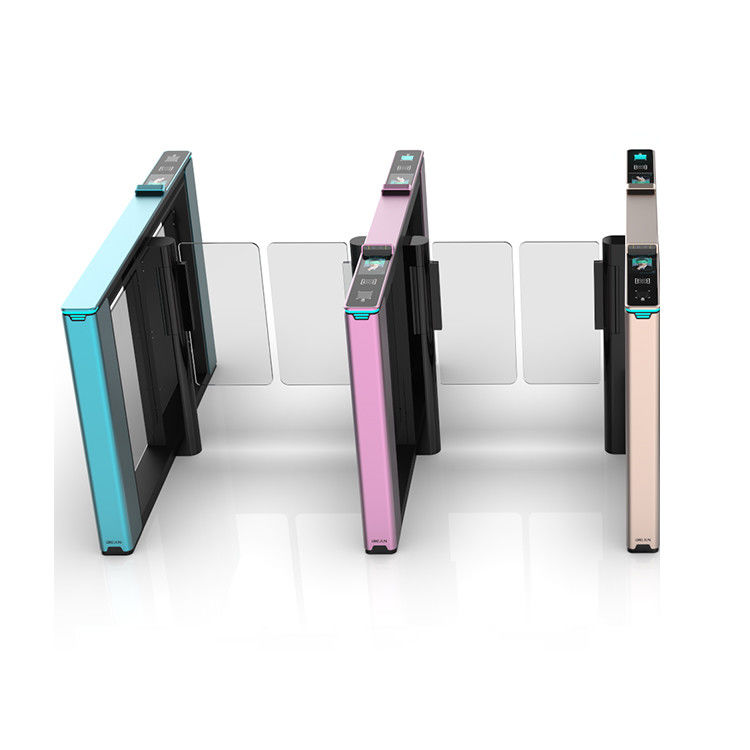

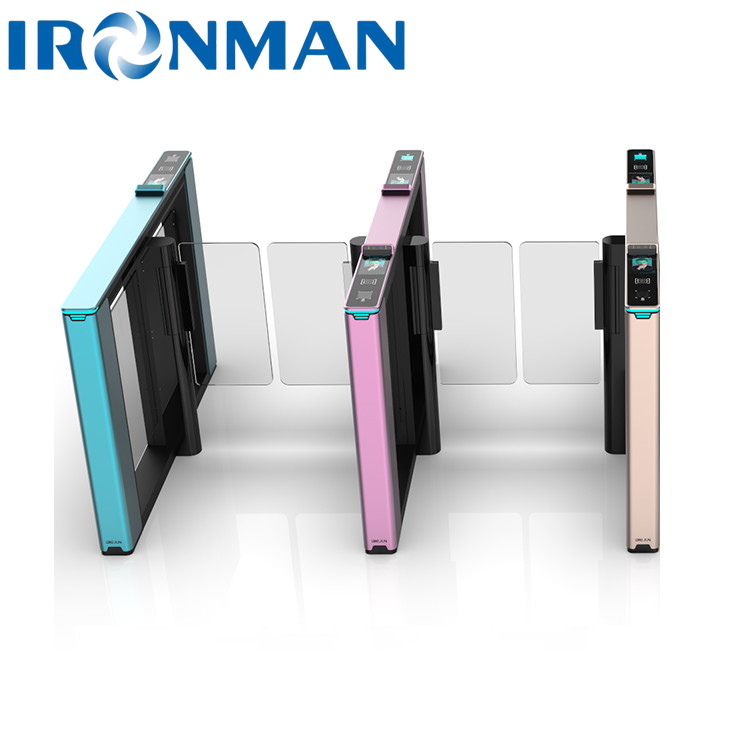

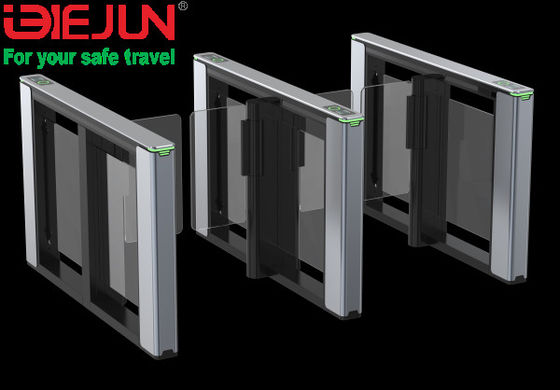

Supermarket Single Swing Barrier Gate Entrance Access Control System
Product Specifications of (TJ-LBST01) Swing Turnstile |
||||
| Product parameters | Dimensions | 1500*120*980MM | Housing Material: | Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast aluminum alloy 10mm Column:Cast aluminum alloy 3mm |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Column:Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation (standard color: space gray) |
|
| Product configuration: | Single Channel Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/ optional:Access control system / card swiping module / QR code module / face recognition equipment |
|||
| 技术参数 | ◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 1.5mm ◆supply voltage:AC220V±10V ◆Drive motor: servo motor ◆Movement structure: Planetary metal gear reducer:high-speed, precise, silent, and average failure-free ◆Service life: 12,000,000 times of continuous opening and closing ◆Infrared sensor: 8 pairs (support more than 8 pairs) ◆Opening method:RS485/RS232/IO ◆EMC Standard: Antistatic level 3,Air discharge 15KV ◆Lightning Protection:2KV ◆Motor: servo motor,High precision clutch movement ◆Working temperature:-20℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Opening speed:＜0.5S(aujustable) ◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function parameter | Basic Function | ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application:
Suitable for indoor pedestrian passage places;
office buildings
hotels
residential quarters
high-end factory parks
higher schools
hospitals
enterprises and institutions
government halls
sports venues
convention and exhibition centers;
