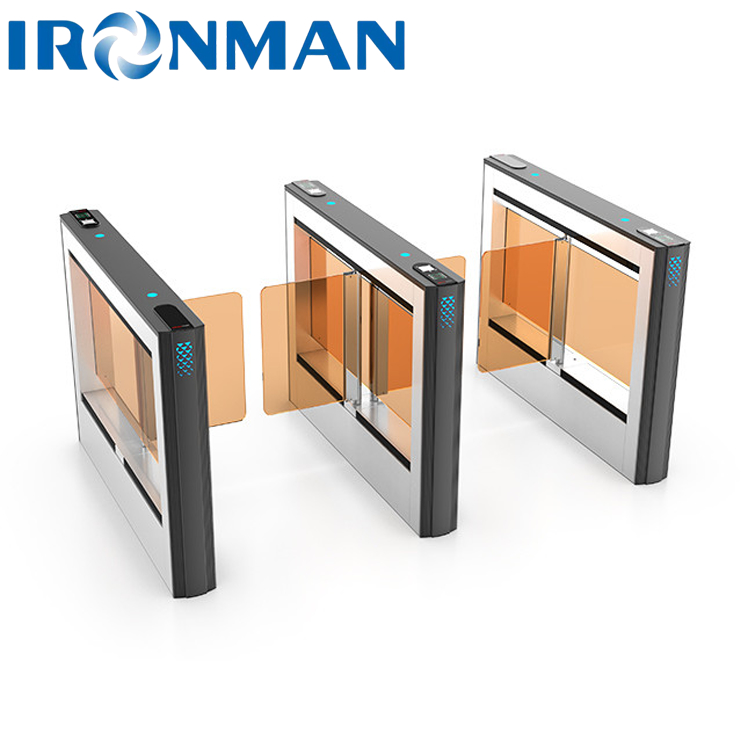

Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym

Product Details

Place of Origin: China

Brand Name: IRONMAN

Certification: CE; FCC; ISO9001

Model Number: IM.XS.02A

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton packing

Delivery Time: 5~8 working days

Get Best Price
Contact Now
Specifications
Highlight:
Description
Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym

Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym

IRONMAN IM.XY.02A state-of-the-art Swing Barrier: the perfect solution for access control and security management. Designed with cutting-edge technology, our Swing Barrier offers a seamless and efficient entry management system for various environments.

The Swing Barrier provides a high level of security by allowing only authorized individuals to enter. It effectively prevents unauthorized access and ensures the safety of your premises.

Equipped with advanced motorized mechanisms, our Swing Barrier operates smoothly and silently, providing a seamless experience for users. The barriers swing open and close swiftly, allowing for quick and efficient passage.

The Swing Barrier offers bi-directional control, allowing for both entry and exit access. This feature ensures smooth traffic flow and eliminates congestion during peak hours.



Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym 0



Product Specifications



Swing Barrier Gate <IM.XS.02A> Product Specifications
Product Parameters Dimensions: 1400*166*1000mm Box Material:

Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide

Swing Arm Material: 10MM Acrylic (Stainless steel elbow is optional) Channel Width: ≤1110mm
Product Dimension Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym 1
Function Parameters

◆Turnstile Body: Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing
◆Work Voltage: AC110~220V±10V
◆Driving Motor: DC brushless motor(24~36VDC)
◆MCBF: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: 6 pairs;

◆Working Environment Temperature: -35℃~75℃
◆Relative Humidity: 0~90% (No condensation)
◆Communication Interface: RS232 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)

  Basic Functions ●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Extensible Functions ▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Projects

Whether you need to secure an office building, airport, train station, or any other public venue, our Swing Barrier provides a reliable and efficient access control solution. Experience the convenience, security, and peace of mind with our advanced Swing Barrier system.

Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym 2

Access Control Turnstiles , Swing Barrier Gate With Rfid Reader For Gym 3
