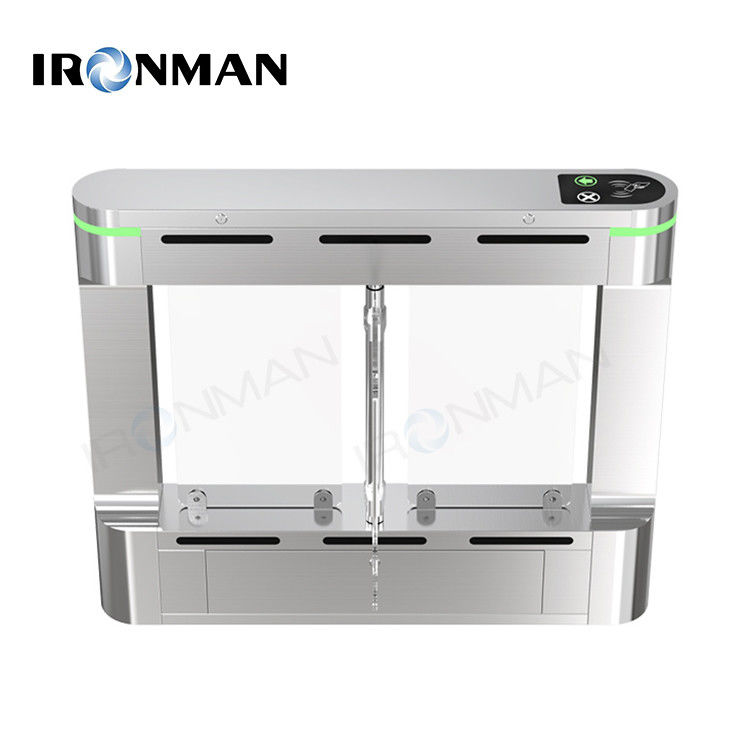

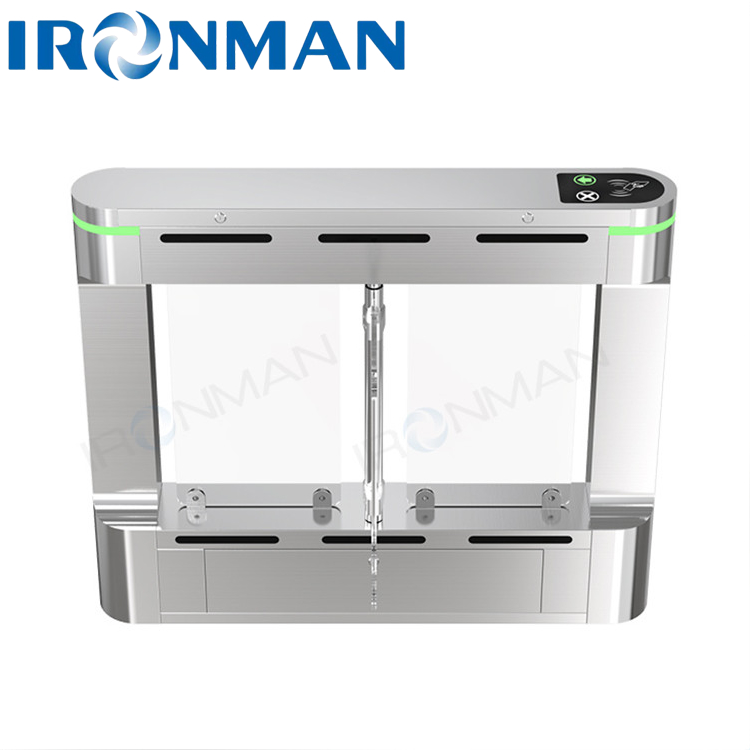

Induction Electronic Security Supermarket Barrier Gate Swing Gate Turnstile

Product Details

Place of Origin: China

Brand Name: Ironman

Certification: ISO9001

Model Number: IM.B201

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Induction Barrier Turnstile Gate

,

Supermarket Barrier Turnstile Gate

,

Electronic Security Barrier Turnstile Gate

Name:
Arc Small Swing Gate
Dimensions:
1200*180*1020mm
Channel Width:
≤830mm
Swing Arm Material:
10MM Acrylic (Stainless Steel Elbow Is Optional)
Application:
Semi-outdoor Pedestrian / Bicycle Passages
Alarm Function:
Sound And Light Alarm Function
Name:
Arc Small Swing Gate
Dimensions:
1200*180*1020mm
Channel Width:
≤830mm
Swing Arm Material:
10MM Acrylic (Stainless Steel Elbow Is Optional)
Application:
Semi-outdoor Pedestrian / Bicycle Passages
Alarm Function:
Sound And Light Alarm Function
Description
Induction Electronic Security Supermarket Barrier Gate Swing Gate Turnstile





 Arc Small Swing Gate <TDH-B201> Product Specifications
Product Images Document Number:
Edition: A/2
Revision Time: 2022/8/29
Revised by:

Product Parameters Dimensions: 1200*180*1020mm Box Material: Top Cover: stainless steel SUS304 foot 1.2mm
Box: stainless steel SUS304 foot 1.0mm
Swing Arm Material: 10MM Acrylic (Stainless steel elbow is optional) Channel Width: ≤830mm
Places: It can be used for indoor/outdoor/semi-outdoor pedestrian/bicycle passages;
Such as: primary and secondary schools/colleges/office buildings/hotels, residential quarters/factory parks/hospitals/enterprises and institutions/government halls/sports venues, etc.
Product Line Drawings:
Technical Parameters ◆Chassis Material: Austenitic stainless steel SUS304
◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing
◆Work Voltage: AC220V±10V
◆Driving Motor: DC brushless motor(24~36VDC)
◆Movement Structure: Horizontal helical gear anti-collision movement
◆Normal Work Life: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: 4 pairs; 8 pairs can be selected
◆Working Environment Temperature: -35℃~75℃
◆Relative Humidity: 0~90% (No condensation)
◆Communication Interface: RS232 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters Basic Functions ●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.

●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Extensible Functions ▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Features:

Fast induction pass,Small footprint and powerful control panel



Application

Bus, Station,factories,Toilets, Library,etc
