Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001; CE; FCC
Model Number: IM.P505
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Sliding Gate |
Dimensions: |
1400* 335* 980mm |
Material: |
304 Stainless Steel |
Power Supply Voltage: |
AC110~220V±10%, 50Hz |
Working Environment Temperature: |
-30℃ ~ +70℃, RH ≤95%, No Condensation |
Sensor: |
6 Pairs Of Infrared Detection |
Traffic Speed: |
≤ 30 People/min |
Communication Interface: |
RS232/RS485 Electrical Standard |
Input Interface: |
Dry Contact |
Expandable Functions: |
ID, IC Card |
Name: |
Sliding Gate |
Dimensions: |
1400* 335* 980mm |
Material: |
304 Stainless Steel |
Power Supply Voltage: |
AC110~220V±10%, 50Hz |
Working Environment Temperature: |
-30℃ ~ +70℃, RH ≤95%, No Condensation |
Sensor: |
6 Pairs Of Infrared Detection |
Traffic Speed: |
≤ 30 People/min |
Communication Interface: |
RS232/RS485 Electrical Standard |
Input Interface: |
Dry Contact |
Expandable Functions: |
ID, IC Card |
Sliding Gate (IM.P505) Product Specifications
| Product Parameters | Dimensions | 1400*335*980MM | Housing Material: | Body: 1.5MM SUS304 Stainless Steel Top Cover: 2.0MM SUS304 Stainless Steel |
| wing material: | Transparent tempered glass；T=10MM | Surface: | Original color hairline Stainless Steel | |
| application: | Indoor Unit used for:Airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc. | |||
| Technical Parameter |
◆Body: 1.5MM SUS304 Stainless Steel Top Cover: 2.0MM SUS304 Stainless Steel |
|||
| Function Parameter | Basic Function | ●Sound Alarm:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop sound alarm function | ||
| ●Intelligent linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲Voice broadcast, expandable voice module, and volume adjustment | |||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||

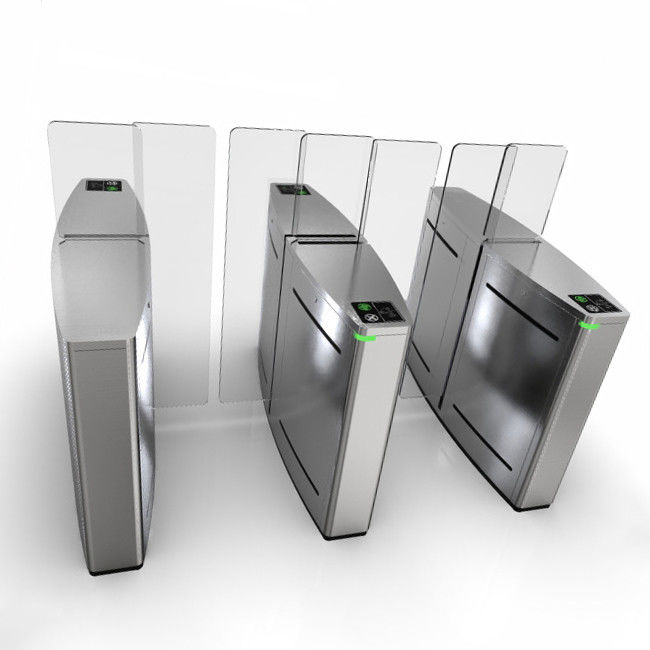

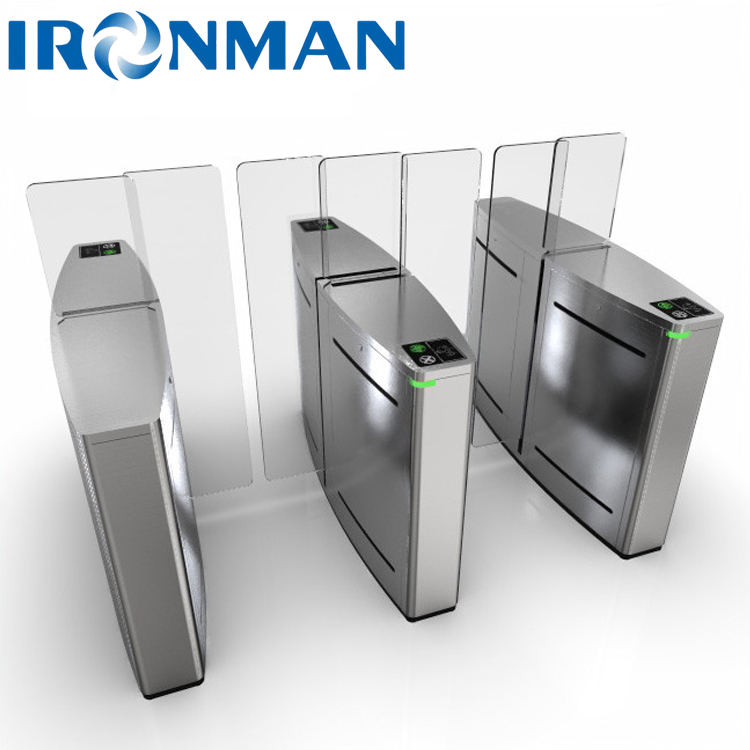

Product picture
