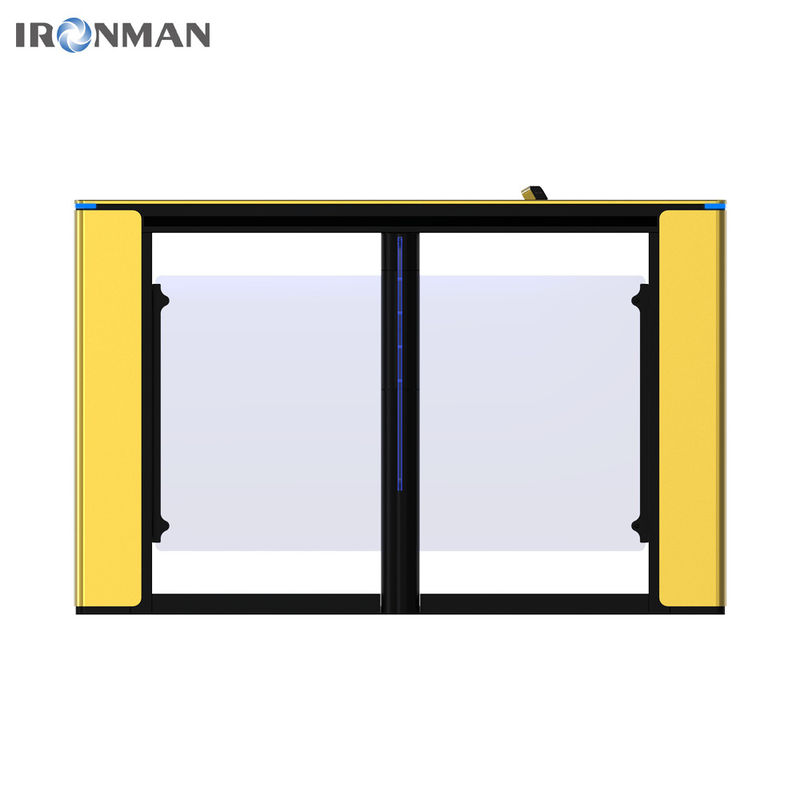

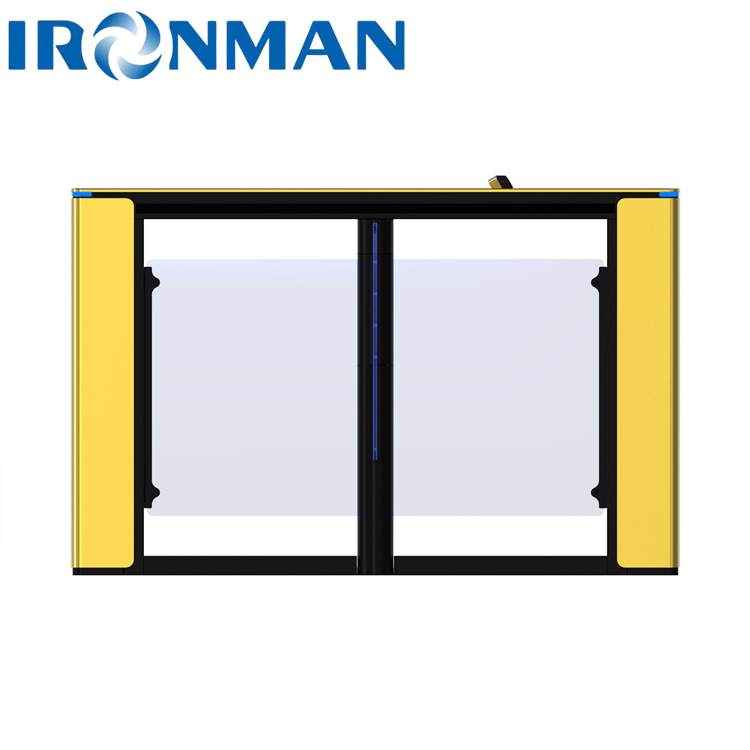

High-end Latest Design Speed Gate Turnstile With Face Recognition for Gyms Office Building
Quick detail
Our pedestrian access gates are the perfect solution for controlling the flow of people in various settings. Whether it’s a commercial building, a transportation hub, an educational institution, or a residential complex, our gates offer reliable and efficient access management.
product features
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
▲Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
Expandable Functions: can be connected to peripheral ID, IC card, fingerprint recognition, face recognition, finger vein recognition, two-dimensional code recognition, ID card recognition, mobile APP opening, human integrated anti-static equipment, security gate, visitor system, etc.
| Product Techinique Parameters |
| Dimensions(Customization Accepted) |
length 1500* width 120* height 980mm |
| Material |
Precision aluminium alloy moulding (top cover 10mm thick, side body 3mm thick) + baking paint SPCC |
| Power Supply Voltage |
AC110~220V±10%,50Hz |
| Drive Motor |
brushless servo motor |
| Infrare Detection Sensor |
8 pairs |
| High Precision Clutch Movement,MCBF |
8 million times |
| Relative Humidity |
Relative humidity ≤ 95%,Non-condensation |
| Input Interface |
Dry Contact; 12V level signal or 12V pulse signal with pulse width >100ms |
| Communication Interface |
RS485 electrical standard |
