| Place of Origin: | China |
| Brand Name: | IRONMAN |
| Certification: | ISO9001;CE;FCC |
| Model Number: | IM.ST601 |

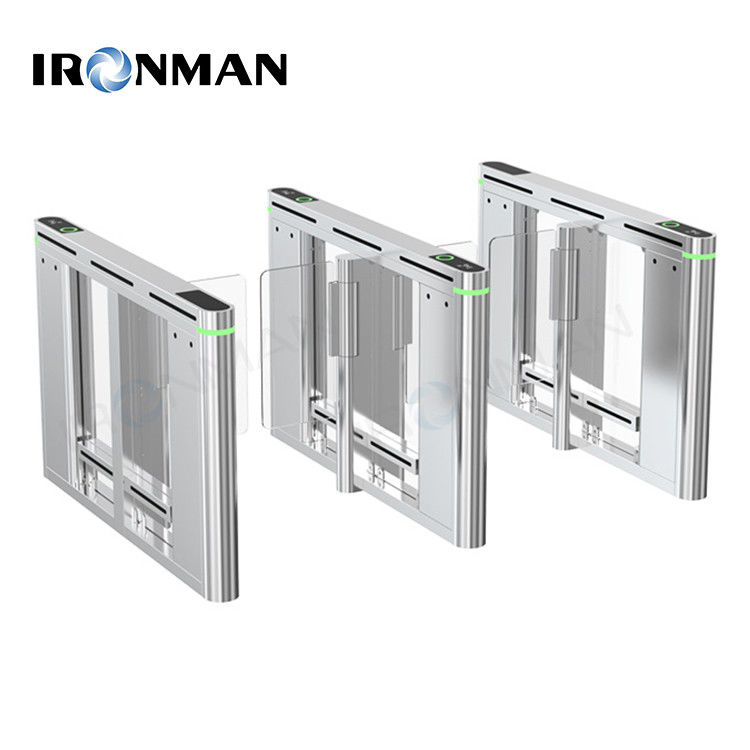

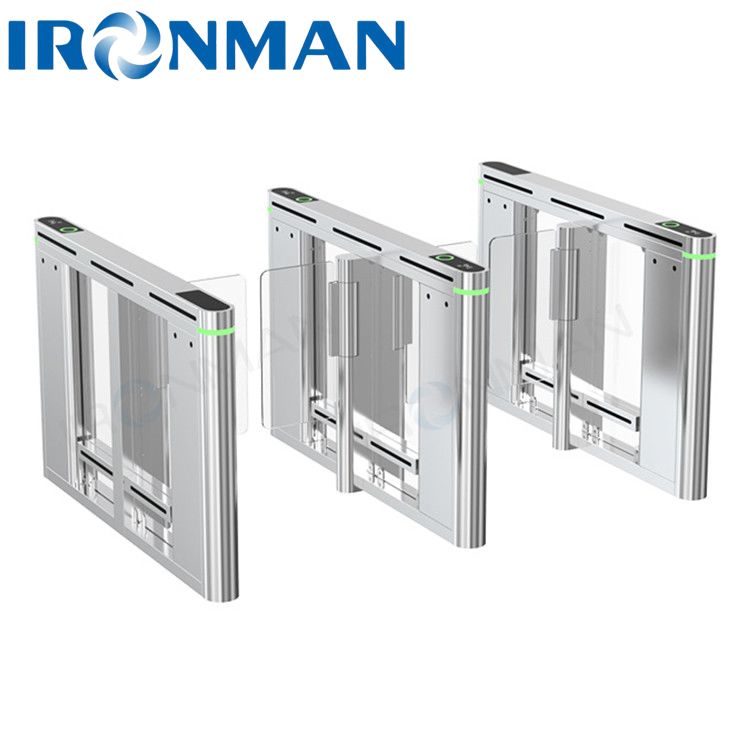

Product Overview
The Tempered Glass High Speed Gate Speed Gate Turnstile Access Control for Office Buildings is a sophisticated and reliable access control solution tailored specifically for modern office environments. Combining high - strength tempered glass with advanced control technology, this turnstile offers both aesthetic appeal and excellent security performance. It is designed to manage the flow of people efficiently, ensuring that only authorized individuals can enter the office building, while enhancing the overall image of the workspace.
Key Features
1.Sturdy and Elegant Design
Crafted with high - quality tempered glass, the turnstile features a sleek and modern appearance that seamlessly integrates with the interior design of office buildings. The tempered glass not only provides an elegant visual effect but also offers high impact resistance, ensuring long - term durability.
2.High - speed Operation
With rapid opening and closing mechanisms, the speed gate enables quick passage, significantly improving the efficiency of personnel access. It can handle a high volume of people during peak hours, reducing congestion at entrances and exits.
3.Precise Access Control
Integrated with advanced access control systems, such as card readers, fingerprint scanners, or facial recognition devices, the turnstile ensures strict identity verification. Only those with valid access credentials can pass through, enhancing the security of the office building.
specification
| Dimensions | length 1200* width 120* height 1000mm |
| Infrared detection | 8 pairs/10 pairs |
| Relative Humidit | relative humidity ≤95% |
| Channel Width | ≤1000-1300mm |
| Traffic Speed | ≤45 people/minute |
| Passing Direction | two-way (optional) |
| Working Environment | indoor and outdoor |
| Unlock Time | 0.2s |
| Power Supply Voltage | AC110~220V±10% |
| Communication Distance | ≤1200 meters |
| Material | Stainless Steel 304 |
| Communication Interface | RS485 electrical standard |
Basic Functions |
Alarm Function | Equipped with audible and visual alarm functions. |
| Anti-Interference | Effectively prevents abnormal operation of the turnstile caused by external factors such as electromagnetic interference | |
| Passage Mode Setting | Can set one-way passage, two-way passage, and free passage | |
| Anti-Tailing | Prevents non-permitted situations where excessive people pass through at one time | |
| Anti-Pinch Function | When the turnstile is in the process of closing, it will stop closing upon detecting an anti-pinch signal | |
| Automatic Reset | After the turnstile is opened, if no passage occurs within the specified time, the system will automatically cancel the user's current passage authority; the default time is 6 seconds, and the passage time can be set via a switch | |
| Access Control | External ports can be connected to various biometric devices | |
| Power-Off Gate Opening | The gate opens automatically when power is cut off | |
| Fault Detection | The control board supports fault type detection to assist in analyzing fault causes and handling abnormal failures | |
| Passage Indication | Equipped with passage status indicator lights; can also set an alarm function for exceeding the sojourn time in the channel |
