Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Turnstile Entrance Gates |
Dimensions: |
1400*180*1020mm |
Channel Width: |
≤1050mm |
Swing Arm Material: |
A：Stainless Steel SUS304 Elbow B：10MM Acrylic Swing Door |
Application: |
Indoor / Outdoor / Semi-outdoor Pedestrian |
Work Voltage: |
AC220V±10V |
Infrared Sensors: |
6 Pairs |
Name: |
Turnstile Entrance Gates |
Dimensions: |
1400*180*1020mm |
Channel Width: |
≤1050mm |
Swing Arm Material: |
A：Stainless Steel SUS304 Elbow B：10MM Acrylic Swing Door |
Application: |
Indoor / Outdoor / Semi-outdoor Pedestrian |
Work Voltage: |
AC220V±10V |
Infrared Sensors: |
6 Pairs |

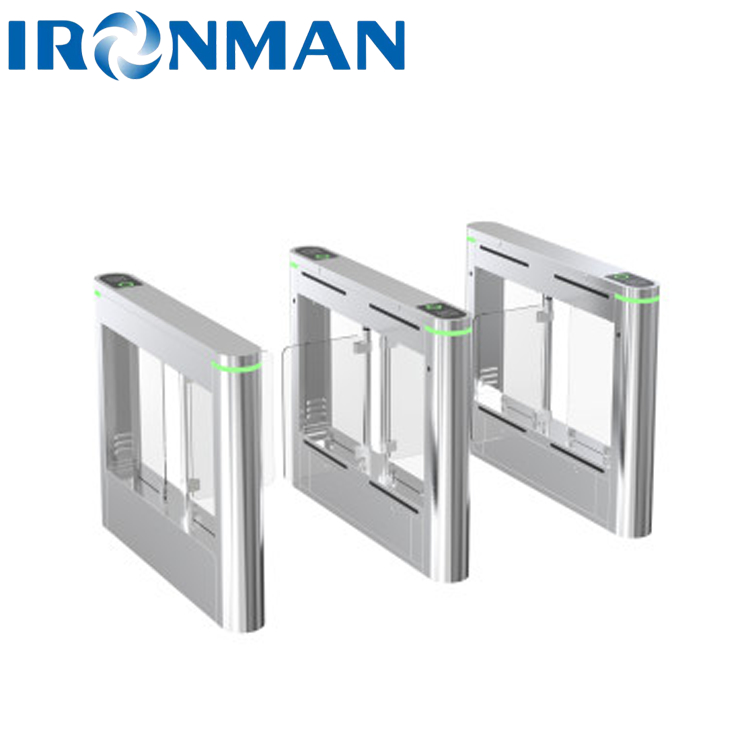

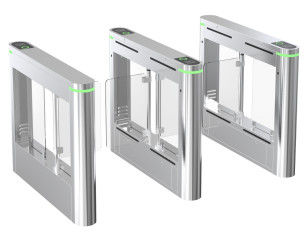

| Arc Small Swing Gate <TDH-B203>Product Specifications | ||||
| Product Images | Document Number: | |||
| Edition: | A/1 | |||
| Revision Time: | 2022/5/3 | |||
| Revised by: | ||||
| Product Parameters | Dimensions: | 1400*180*1020mm | Box Material: | Box: stainless steel SUS304 standard 1.2mm Top Cover: stainless steel SUS304 foot 1.2mm |
| Swing Arm Material: | A:Stainless steel SUS304 elbow B:10MM Acrylic swing door |
Channel Width: | ≤1050mm | |
| Places: | It can be used for indoor/outdoor/semi-outdoor pedestrian/bicycle passages; Such as: primary and secondary schools/colleges/office buildings/hotels, residential quarters/factory parks/hospitals/enterprises and institutions/government halls/sports venues, etc. |
|||
| Product Line Drawings: | ||||
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing ◆Work Voltage: AC220V±10V ◆Driving Motor: DC brushless motor(24~36VDC) ◆Movement Structure: Horizontal helical gear anti-collision movement, clutch anti-collision device (optional) (patented product); ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: 6 pairs ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Functions | ●Alarm Function: Sound and light alarm function. | ||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. |
||||
| ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. | ||||
| ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. | ||||
| ● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. | ||||
| ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ●The gate opens after power failure. | ||||
| ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. | ||||
| ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set. | ||||
| Extensible Functions | ▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode. |
|||
| ▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel. |
||||
| ▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate. |
||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state. |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bidirectionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
High Quality Material
High quality brushed 304 stainless steel material. Chromium element ratio is higher. Rust resistance, waterproof, rainproof and rigid.
Product Application
widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
