1500*240*980MM Dimensions, SUS304 Bi-directional Passing Direction Tripod Turnstile

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.TL.01A
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Detail Information
Name: Turnstile Barrier Gate Application: SUS304
Power Supply Voltage: AC110~220V±10V Brake Rod Material: Stainless Steel SUS304
Channel Width: 550~600MM Function: Anti-interference , Anti-collision Function

Electronic Turnstile Barrier Gate


Automatic Turnstile Barrier Gate

Product Description

Full Automatic Bi-directional Passing Direction Tripod Turnstile

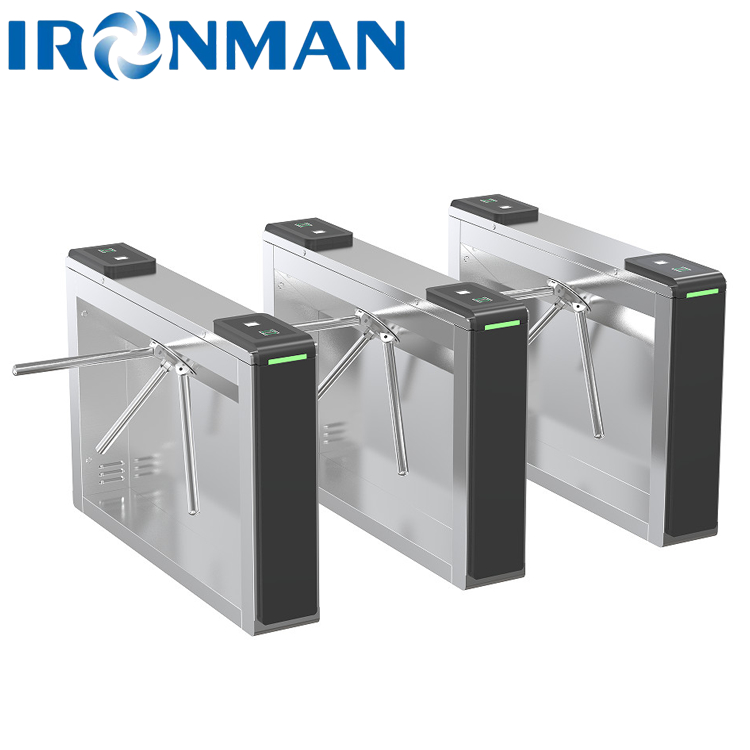

1500*240*980MM Dimensions, SUS304 Bi-directional Passing Direction Tripod Turnstile 0




















Product Parameters

Product Parameters Dimensions 1500*240*980MM Housing Material: Housing: SUS304 Stainless Steel 1.5MM
Top Cover: SUS304 Stainless Steel  2.0MM
Column:Corrosion Resistant Electrolytic Plate baking paint 1.5MM
Arm material: AISI SUS304 Surface: Housing:original color hairline Stainless Steel
Verification area module: black PC parts
Application: indoor/outdoor/semi-outdoor locations
Technical Parameter ◆Housing Material: SUS304 1.5MM; Top Cover: SUS304 2.0MM; Column:Corrosion Resistant SPCC baking paint 1.5MM
◆Service life: 5,000,000 times of continuous opening and closing
◆Input voltage: AC220V±10% ,50Hz~60Hz◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆Drive motor: DC brushless motor(24~36VDC)
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Turnstile working speed: 30~50 people/min (memory mode can be turned on)
◆Passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function Parameter Basic Function ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians of the traffic status and direction of the gate.
●Anti illegal entry function: when card swiping is invalid,no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in,and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).
●Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flashing alarm is required, a luminous alarm must be added to the housing frame.
●automatic lever rotation function: when the pedestrian swipes the card effectively, the brake lever will automatically rotate to a certain angle in the forward direction to prompt the pedestrian to pass. After gently pushing the brake lever, the brake lever will automatically rotate following the passage of people, and the rotation speed will be automatically adjusted according to the pedestrian's passing speed.
●Automatic bar droping function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements.
● automatic lever loading function: after the lever is automatically lowered after power failure, the system will automatically rotate the brake lever slowly for several weeks to restore the brake lever to the blocking position and give an alarm.
● anti collision function: when the brake lever is locked, it cannot be pushed by external force, and can withstand the impact force within the safe range.
●anti reverse passing function: in the process of passing, after the brake lever has been rotated by a certain angle, forcibly rotating the brake lever in reverse direction will be regarded as reverse passing, and the system will automatically alarm and lock the brake lever.
● fault detection: the control board can support fault type detection, assist in analyzing fault causes and handling fault abnormalities.
●anti interference: it can prevent the abnormal gate caused by electromagnetic and other external factors
Extension Function ▲Voice broadcasting, expandable voice module, and volume adjustment
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Packing and Shipping:


Packaging and Shipping for Speed Gate Turnstile

Speed Gate Turnstiles are packaged using high-quality cartons and wooden packing materials. Each turnstile is securely packaged and shipped with the utmost care to ensure safe arrival.

For international shipping, Speed Gate Turnstiles are shipped using a reliable courier service. Most items are shipped within 7 to 20 days of payment.


Dimension Drawing:

1500*240*980MM Dimensions, SUS304 Bi-directional Passing Direction Tripod Turnstile 1


1500*240*980MM Dimensions, SUS304 Bi-directional Passing Direction Tripod Turnstile 2

Support and Services:

Tripod Turnstile Technical Support and Services

IM.TL.01A tripod turnstile is designed to provide secure, reliable and efficient access control for public and private areas. The turnstile can be used in many different ways, from simple access control to more complex applications such as access control with biometric authentication. To ensure our customers can utilize the full potential of our Speed Gate Turnstile, we offer a range of technical support and services.

We offer a 24/7 helpline with experienced technical staff who can help with any technical queries and issues. We also provide on-site support to install and configure the turnstile in your facility, as well as regular maintenance and servicing. Our team of experienced engineers can also provide custom solutions tailored to your specific needs.

We also provide comprehensive user manuals and tutorials, designed to help you get the most out of your Speed Gate Turnstile. Our online support portal contains a range of resources and FAQs to help you find answers quickly.

We strive to provide the best support and service to our customers so that they can get the most out of their Speed Gate Turnstile. If you have any questions or require assistance, please do not hesitate to contact us.
