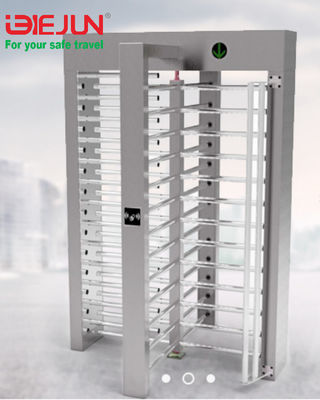

Auto Pedestrian Turnstile Security Doors Full Height Sliding Turnstile

Auto Security Full Height Turnstile Pedestrian System 30 Persons / Minute Speed

Product technical parameters

1. Overall dimensions: 1500 * 1460 * 2300mm;

2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;

3. Power supply voltage: AC220V ± 10%, 50Hz;

4. Working environment temperature: - 30 ℃~+70 ℃;

Relative humidity: 95% relative humidity, non condensing;

5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;

6. Driving current: ＞ 200mA;

7. Communication interface: RS485 electrical standard;

8. Length of gate pole: 500mm;

9. Channel width: 550-600mm;

10. Traffic speed: ≤ 30 persons/min;

11. Structure: frame structure/standard stainless steel shell;

12. Swing rod steering: support one-way and two-way (optional);

13. Working environment: indoor and outdoor.

Application

Suitable for indoor / outdoor pedestrian passing places; For example: scenic spots, parks, amusement parks / primary and secondary schools / colleges and universities / office buildings / hotels, residential communities / factory parks / hospitals / enterprises and institutions / government halls / stadiums and other scenes
