Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-Q802
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Turnstyle Gates |
Boundary Dimension: |
1500 * 1500 * 2300 Mm |
Occasion Application: |
Prison, Stadium, Parking System |
Feature: |
Anti Backup Function |
Traffic Speed: |
≤ 30 Persons/min |
Swing Rod Steering: |
Support One-way And Two-way (optional) |
Name: |
Turnstyle Gates |
Boundary Dimension: |
1500 * 1500 * 2300 Mm |
Occasion Application: |
Prison, Stadium, Parking System |
Feature: |
Anti Backup Function |
Traffic Speed: |
≤ 30 Persons/min |
Swing Rod Steering: |
Support One-way And Two-way (optional) |

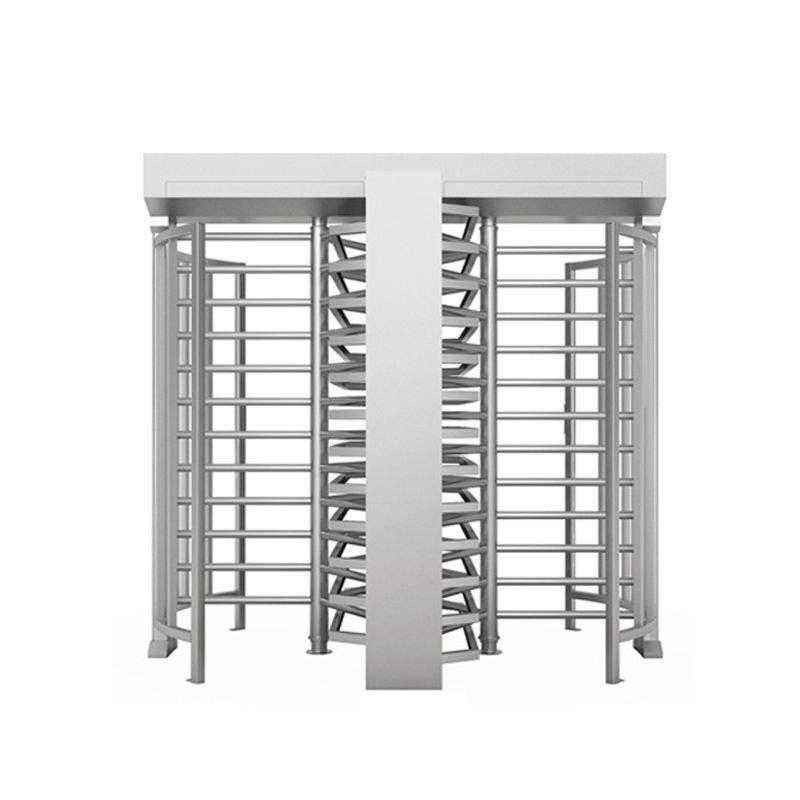

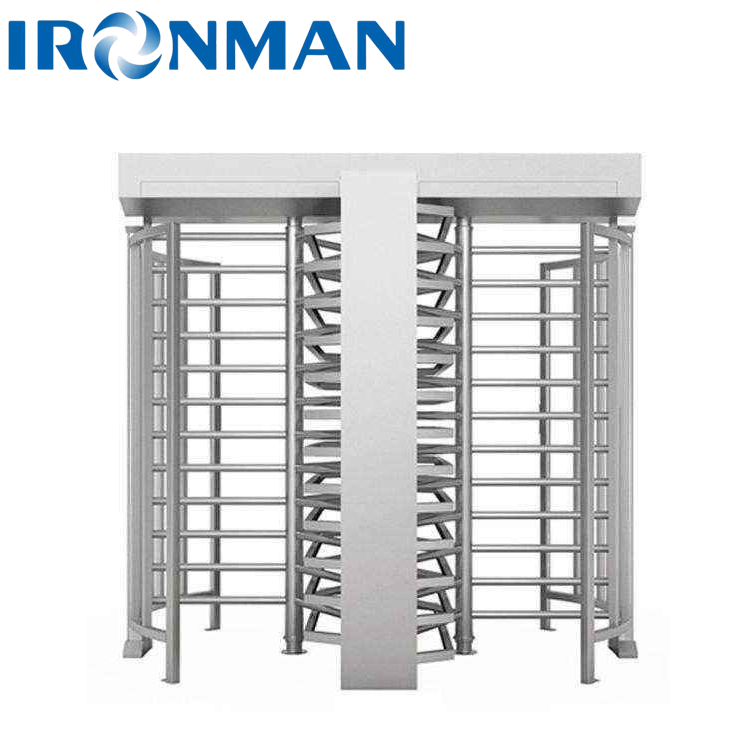

Single Lane Stainless Steel Turnstiles , Pedestrian Turnstile Gate Anti Backup Function
Product technical parameters
1. Boundary dimension: 1500 * 1500 * 2300 mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Power supply voltage: AC220V ± 10%, 50Hz;
4. Working environment temperature: - 30 ℃~+70 ℃;
Relative humidity: 95% relative humidity, non condensing;
5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
6. Driving current: ＞ 200mA;
7. Communication interface: RS485 electrical standard;
8. Length of gate pole: 500mm;
9. Channel width: 550-600mm;
10. Traffic speed: ≤ 30 persons/min;
11. Structure: frame structure/standard stainless steel shell;
12. Swing rod steering: support one-way and two-way (optional);
13. Working environment: indoor and outdoor.
Occasion Application
Full-height turnstile is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in some high security places, such as prison, stadium, parking system area , and so on…
