Tripod Turnstile Gate
>

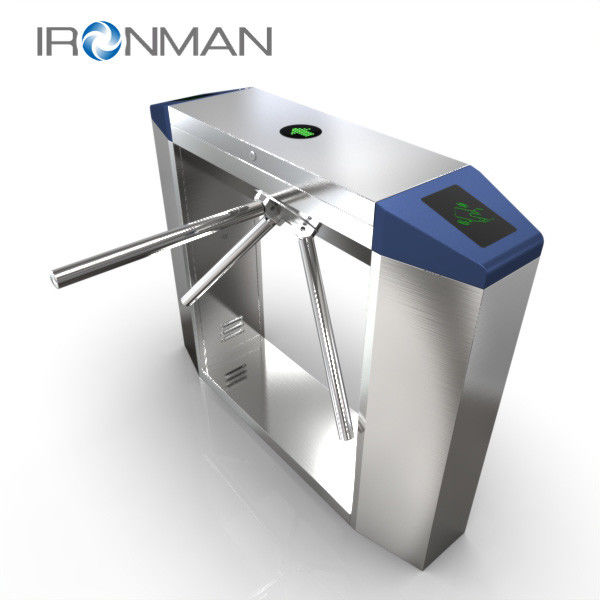

Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate

Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate

Brand Name: Portevix
Model Number: PX-S109
MOQ: 1pc
Price: Negotiation
Packaging Details: carton packing
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
china
Certification:
CE ,FCC, RoHS, IP54, ISO9001
Name:
Tripod Turnstile
Power Voltage:
AC220V±10V
Housing Material:
SUS304 Stainless Steel
Dimensions:
1200*280*980mm
Passage Width:
550MM
Communication Interface:
RS232, RS485,TCP/IP
Service Life:
Over 10 Million Times
Passing Speed:
30 Persons / Min
Application:
Office, Community, School, Gym, Hotel Etc.
Supply Ability:
2000 pc per/month
Highlight:

High Security Drop Arm Turnstiles

,

Bi Directional Turnstile

Product Description

Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate


Key Features


1. Premium SUS304 Austenitic Stainless Steel housing combined with outdoor PC-grade plastic modules (10-year warranty), offering superior rust resistance for both indoor and outdoor use.


2. Tested for over 5,000,000 continuous MTBF cycles, significantly lowering long-term maintenance/replacement costs for high-traffic environments.

3. Automatic tripod arm drop function upon power failure, enabling rapid evacuation during emergencies to meet global fire safety regulations.

4. Features an automatic locking mechanism and alarm trigger against unauthorized entry or forced pushing without a valid swipe.

5. Rugged mechanical structure capable of withstanding physical impact in the locked state, protecting the gate from vandalism.

6. Flexible interface compatible with third-party access control systems, including biometric identification (face recognition, fingerprint, RFID) and RS232 serial ports.

7.Passage speed up to ≤30 persons/min with programmable memory mode and adjustable timeout (default 10s) to prevent tailgating and optimize crowd flow.

8. Built-in anti-electromagnetic interference protection ensures stable operation, paired with intuitive LED indicators for clear directional guidance.

Parameters


Product Name
Tripod turnstile
Power Supply
AC110V~AC220V
Material
SUS304 Stainless steel
Dimensions
1200*280*980mm
Passage Width
550MM
Direction
Single direction or bi-direction(optional)
Service Life
Over 10 million times
Working Environment
Indoor and outdoor (-35℃~75℃)
Machine Core
Semi-automatic machine core
Communication Interface
RS232, RS485,TCP/IP
Passing Speed
30 persons / min
Related Humidity
<95%RH. No condensation
Application
Office, community,  school, Gym, hotel etc.
Access Control
Support RFID, IC, QR Code, Face recognition, Button, Fingerprint etc.
Customization
Access control methods, system, size, color, material are available


Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate

Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate

Turnstiles Stainless Steel Tripod Turnstile RFID Card Access Control Anti-Tailgating 2-Way Brushless Motor IP54 Security Gate


FAQ


Q: What materials are available for the cabinet and the swing door?

A: We offer multiple material options — turnstile cabinets are available in stainless steel, aluminum alloy and powder-coated finishes; swing doors can be made of acrylic, stainless steel or glass. Materials are fully customizable to suit your requirements and perform reliably in a wide range of extreme environments (outdoor weather, coastal salt spray, high temperature and humidity, etc.).


Q: Can your turnstile integrate with my existing access control system?

A: Yes, our turnstiles support integration with most third-party access control systems. They natively support Wiegand, RS485, and RS232 communication and offer SDK/API support to facilitate software integration. If you can provide details about your system, our engineers can help you confirm the integration solution.


Q: Is the turnstile noisy during operation?

A: The noise level during normal operation is very low, making it perfectly suitable for indoor use; it is barely noticeable in outdoor settings. Noise increases slightly during high-speed, frequent operation, though the motor has been designed with noise-reduction features.


Q: Do you have any project references? Can you share case studies with us?

A: Yes. We have a rich portfolio of domestic and international projects spanning a wide range of sectors — gyms, airports, metro stations, office buildings, hospitals, scenic areas, residential communities, supermarkets, factories and construction sites. We can provide real project photos and videos for your review, and we welcome on-site visits to our factory or ongoing installations. Our team will also work with you to develop a customized solution tailored to your specific needs.


Q: What's your warranty?

A: The entire unit comes with a 12-month warranty. During the warranty period, we provide free replacement parts and remote technical assistance to troubleshoot and resolve issues resulting from inherent product defects. The warranty does not cover damage caused by improper operation, on-site environmental factors, or normal wear and tear. Even after the warranty expires, we continue to supply genuine parts to ensure ongoing project maintenance.


Q: How long is your lead time?

A: Standard models (up to 15 units): 7-15 days. Customized models (custom width, QR module, protocol changes): 2-3 weeks. Key components go through batch procurement, burn-in testing and outgoing inspection to ensure it's done right the first time.


Q: Will it be damaged in transit? Is installation difficult?
A: Reinforced wooden crate packaging for export; we replace any parts damaged in transit. Modular design enables easy on-site assembly with installation drawings/videos. Foundation requirements (bolting/anchoring) are communicated in advance.
