Security Turnstile Entrance Gates Office Speed Swing Barrier

Product Details

Place of Origin: China

Brand Name: IRONMAN

Certification: CE; FCC; ISO9001

Model Number: IM.XS.02A

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton packing

Delivery Time: 5~8 working days

Get Best Price
Contact Now
Specifications
Highlight:

Security Turnstile Entrance Gates

,

Office Turnstile Entrance Gates

,

Office Speed Swing Barrier

Description
Security Turnstile Entrance Gates Office Speed Swing Barrier

Turnstile Entrance Gates , Office Turnstile, Speed Swing Barrier

Turnstile entrance gates are a type of access control system commonly used in various settings to regulate the flow of people entering or exiting a specific area. They are designed to provide security, crowd control, and efficient access management.

Turnstile entrance gates typically consist of rotating barriers or arms that allow only one person to pass through at a time. These barriers can be made of metal or glass, depending on the desired level of security and aesthetic preferences.

There are different types of turnstile entrance gates available, including tripod turnstiles, full-height turnstiles, and waist-high turnstiles. Each type has its own advantages and is suitable for different applications.

Tripod turnstiles are commonly used in areas with moderate security requirements, such as office buildings or stadiums. They have three rotating arms that allow for a controlled flow of people.

Full-height turnstiles are taller and more robust, providing a higher level of security. They are often used in areas where strict access control is necessary, such as prisons or military installations.

Waist-high turnstiles are smaller and more compact, making them suitable for areas with limited space, such as subway stations or amusement parks.

Turnstile entrance gates can be operated manually or electronically. Electronic turnstiles are often integrated with access control systems, such as key cards or biometric devices, to ensure that only authorized individuals can pass through.

In addition to their security benefits, turnstile entrance gates can also help with crowd management and counting the number of people entering or exiting a specific area.

Overall, turnstile entrance gates are an effective and efficient solution for managing access control and ensuring the security of various facilities and venues.

Security Turnstile Entrance Gates Office Speed Swing Barrier 0

Product Specifications



Swing Barrier Gate <IM.XS.02A> Product Specifications
Product Parameters Dimensions: 1400*166*1000mm Box Material:

Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide

Swing Arm Material: 10MM Acrylic (Stainless steel elbow is optional) Channel Width: ≤1110mm
Product Dimension Security Turnstile Entrance Gates Office Speed Swing Barrier 1
Function Parameters

◆Turnstile Body: Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing
◆Work Voltage: AC110~220V±10V
◆Driving Motor: DC brushless motor(24~36VDC)
◆MCBF: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: 6 pairs;

◆Working Environment Temperature: -35℃~75℃
◆Relative Humidity: 0~90% (No condensation)
◆Communication Interface: RS232 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)

  Basic Functions ●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Extensible Functions ▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Projects

Turnstile entrance gates can be used in a variety of settings where access control and crowd management are important. Some common applications include:

  1. Transportation hubs: Turnstile entrance gates are commonly used in airports, train stations, and bus terminals to control the flow of passengers and ensure that only ticketed individuals can enter restricted areas.

  2. Office buildings: Turnstile entrance gates are often installed in office buildings to regulate access to different floors or departments, ensuring that only authorized personnel can enter certain areas.

  3. Sports arenas and stadiums: Turnstile entrance gates are used at sports venues to manage the flow of spectators and ensure that only ticket holders can enter the event area.

  4. Government buildings: Turnstile entrance gates are commonly found in government buildings, such as courthouses or municipal offices, to control access and enhance security.

  5. Educational institutions: Turnstile entrance gates can be used in schools, colleges, and universities to control access to campus buildings or specific areas within the campus.

  6. Theme parks and amusement parks: Turnstile entrance gates are used in theme parks and amusement parks to manage the entry of visitors and ensure that only paying guests can access the attractions.

  7. Industrial facilities: Turnstile entrance gates are often used in industrial facilities, factories, or warehouses to control access to restricted areas and enhance security.

  8. Healthcare facilities: Turnstile entrance gates can be used in hospitals or clinics to control access to sensitive areas, such as operating rooms or patient wards.

These are just a few examples of where turnstile entrance gates can be used. They are versatile and can be customized to meet the specific access control needs of different environments.

Security Turnstile Entrance Gates Office Speed Swing Barrier 2

Security Turnstile Entrance Gates Office Speed Swing Barrier 3

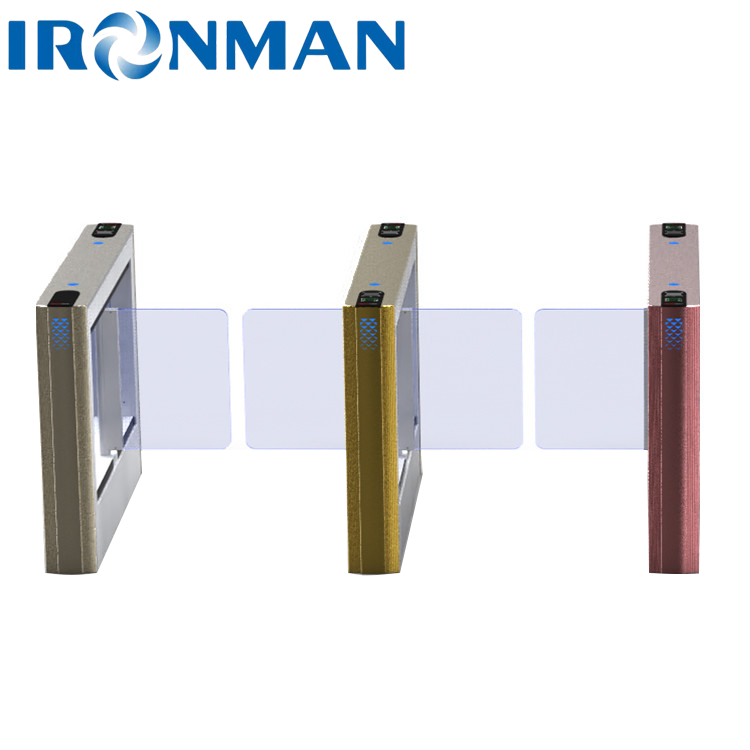

More Color Options

Security Turnstile Entrance Gates Office Speed Swing Barrier 4
