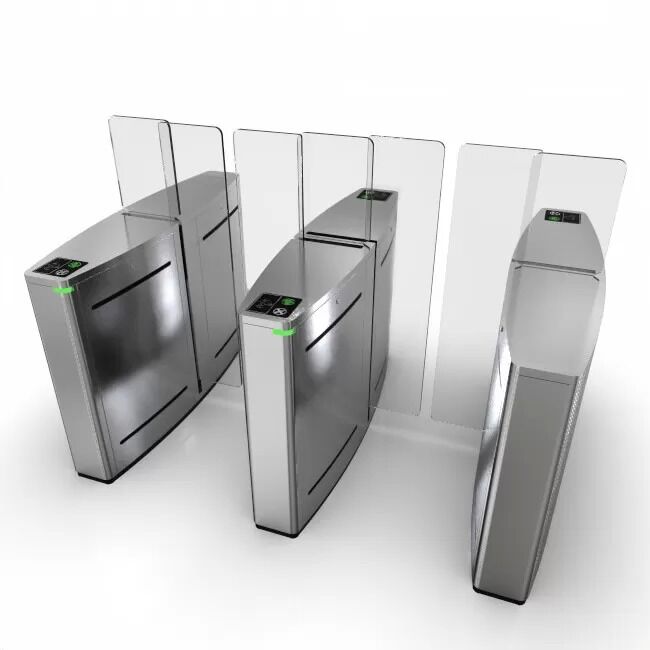

Automatic Sliding Gate Turnstile 1400335980mm with 6 Pairs of Infrared Detection in 304 Stainless Steel

Brand Name:	Ironman
Model Number:	IM.P505
MOQ:	1pc
Price:	Negotiation
Packaging Details:	carton packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO9001; CE; FCC

Name:

Sliding Gate

Dimensions:

1400* 335* 980mm

Material:

304 Stainless Steel

Power Supply Voltage:

AC110~220V±10%, 50Hz

Working Environment Temperature:

-30℃ ~ +70℃, RH ≤95%, No Condensation

Sensor:

6 Pairs Of Infrared Detection

Traffic Speed:

≤ 30 People/min

Communication Interface:

RS232/RS485 Electrical Standard

Input Interface:

Dry Contact

Expandable Functions:

ID, IC Card

Supply Ability:

2000 pc per/month

Product Description

Automatic Sliding Gate 1400×335×980mm with 6 Pairs of Infrared Detection

Product Specifications

Product Parameters	Specifications
Dimensions	1400×335×980mm
Housing Material	Body: 1.5mm SUS304 Stainless Steel Top Cover: 2.0mm SUS304 Stainless Steel
Wing Material	Transparent tempered glass; T=10mm
Surface	Original color hairline stainless steel
Application	Indoor unit used for: Airports, subways, libraries, office buildings, theaters, factories, scenic spots, stations, leisure and entertainment venues, etc.

Technical Parameters

Body: 1.5mm SUS304 Stainless Steel | Top Cover: 2.0mm SUS304 Stainless Steel
Input voltage: AC110~220V±10%, 50Hz
Opening method: RS485/RS232/IO
EMC Standard: Antistatic level 3, Air discharge 15KV
Lightning Protection: 2KV
Working temperature: -30℃～75℃
Relative humidity: 0～90% (non-condensing)
Opening speed: <0.5S (adjustable)
Passing time: Swipe traffic card time: 10S (If no one passes within 10S: gate closes automatically, time adjustable)

Function Parameters

Basic Functions

Sound Alarm: Entering/exiting gate, break-in, trailing, stop sound alarm functions
Intelligent linkage alarm: Sound and light alarms for break-in and reverse pass, linkage with other alarm monitoring equipment
Anti-interference: Limits gate abnormalities caused by electromagnetic and other external factors
Traffic mode setting: One-way traffic, two-way traffic, free traffic via main control panel buttons
Anti tailing: Prevents unauthorized multiple person passage
Anti pinch function: Gate stops closing when detecting anti-pinch signal
Automatic reset: Cancels user permission if not passed within specified time (default 10 seconds)
Access control: External port for various biometric devices
Power off opening: Switch off after power failure, opening direction configurable
Fault detection: Control board supports fault type detection and analysis
Passing indication: Status indicator with stay time alarm function
