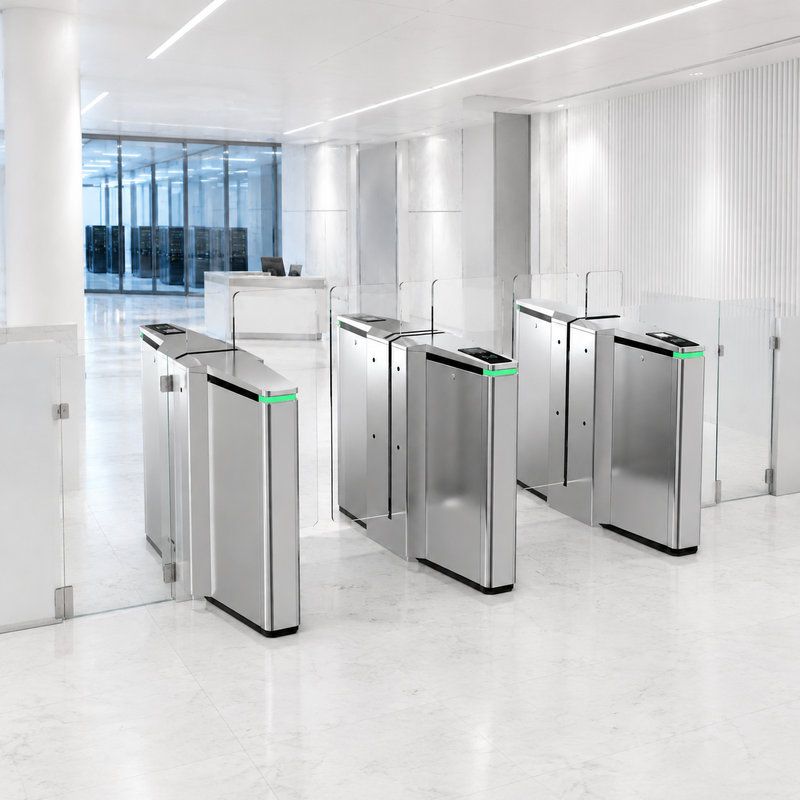

Automatic Sliding Gate Turnstile with Quiet Operation, High Efficiency, and Anti-Climb Security

Designed for quiet operation, high efficiency, and anti-climb security. The equipment runs smoothly with low noise, high efficiency, and space-saving design, effectively reducing security personnel requirements. Suitable for high-end office buildings, airports, subway stations, and other locations with high security demands.

• Housing Material: SUS304 1.5MM; Top Cover: SUS304 2.0MM
• Input voltage: AC110~220V±10%, 50Hz
• Opening method: RS485/RS232/IO
• EMC Standard: Antistatic level 3, Air discharge 15KV
• Lightning Protection: 2KV
• Motor: servo motor, High precision clutch movement
• Working temperature: -20℃～75℃
• Relative humidity: 0～90% (non-condensing)
• Opening speed: ＜0.5S (adjustable)
• Passing time: Swipe the traffic card time: 10S (If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)

• Sound Alarm: Entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop sound alarm function
• Intelligent linkage alarm function: Including sound and light alarms of break-in and reverse pass, which can be linked with other alarm monitoring equipment
• Anti-interference: Limits gate abnormality caused by electromagnetic and other external factors
• Traffic mode setting: One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel
• Anti tailing: Prevents unauthorized multiple person passage
• Anti pinch function: Gate stops closing when detecting anti-pinch signal
• Automatic reset: System cancels user's passage permission if not used within specified time (default 10 seconds)
• Access control: External port can connect various biometric devices
• Power off and opening: Switch off after power off, with configurable opening direction
• Fault detection: Control board supports fault type detection for analysis and handling
• Passing indication: Passing status indicator with alarm function for exceeding stay time in channel

Fast operation and powerful control panel for reliable performance in high-traffic environments.

Office / School / Park / Supermarket / Subway
