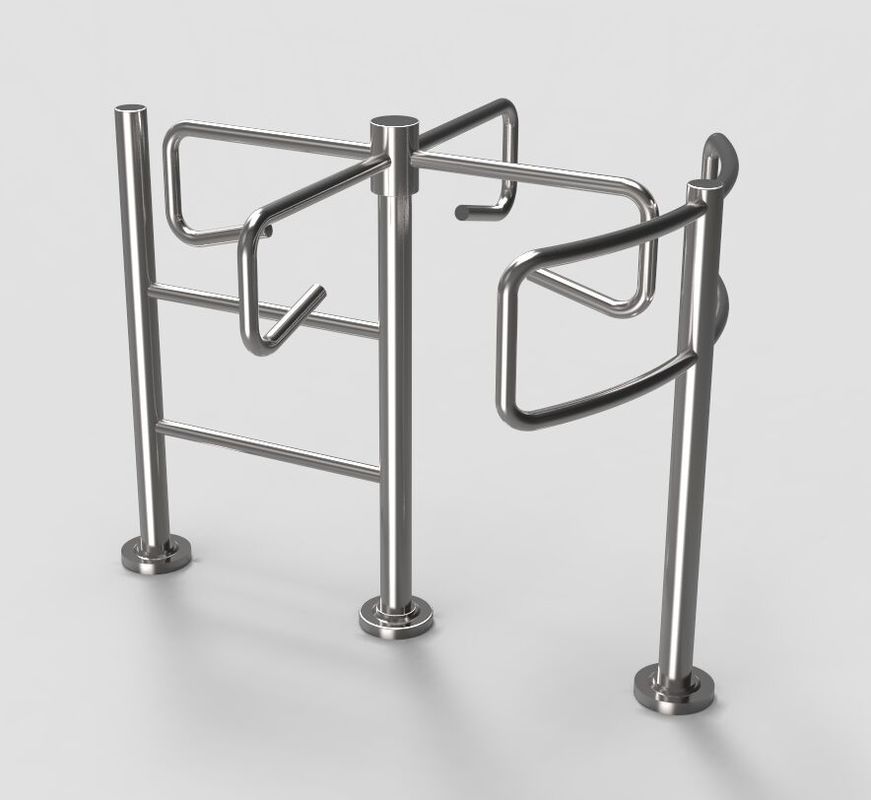

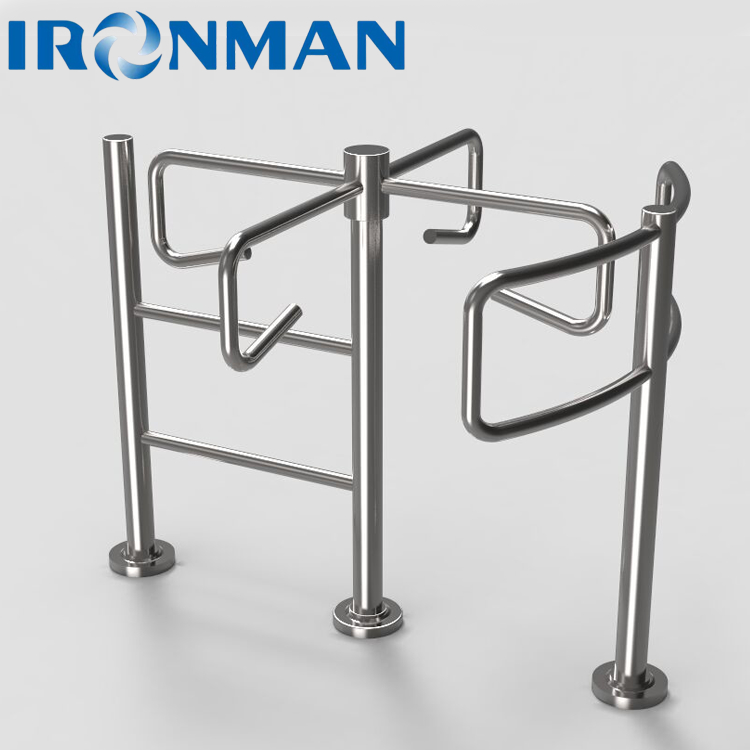

Manual Swing Pedestrian Turnstile Gate Stainless Steel With CE Approval

Manual Swing Pedestrian Turnstile Gate Stainless Steel With CE Approval
Manual Swing Pedestrian Turnstile Gate Stainless Steel With CE Approval

Large Image :  Manual Swing Pedestrian Turnstile Gate Stainless Steel With CE Approval

Product Details:
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-Q808
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month

Manual Swing Pedestrian Turnstile Gate Stainless Steel With CE Approval

Description
Name: Pedestrian Turnstile Gate Overall Dimensions: 1500 * 1460 * 2300mm;
Power Supply Voltage: AC220V ± 10%, 50Hz; Driving Current: > 200mA;
Occasion Application: Commercial Buildings, Subways, Exhibition Halls
High Light:

Manual Swing Pedestrian Turnstile Gate

,

Pedestrian Turnstile Gate Stainless Steel

,

Manual Turnstile Gate

Access Control System Full Height Turnstile Stainless Steel With CE Approval





Product technical parameters

1. Overall dimensions: 1500 * 1460 * 2300mm;

2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;

3. Power supply voltage: AC220V ± 10%, 50Hz;

4. Working environment temperature: - 30 ℃~+70 ℃;

Relative humidity: 95% relative humidity, non condensing;

5. Input interface: 12V level signal or 12V pulse signal with pulse width > 100ms;

6. Driving current: > 200mA;

7. Communication interface: RS485 electrical standard;

8. Length of gate pole: 500mm;

9. Channel width: 550-600mm;

10. Traffic speed: ≤ 30 persons/min;

11. Structure: frame structure/standard stainless steel shell;

12. Swing rod steering: support one-way and two-way (optional);

13. Working environment: indoor and outdoor



Occasion Application

Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.
