| Place of Origin: | china |
| Brand Name: | IRONMAN |
| Certification: | ISO9001 |
| Model Number: | IM.Q802S |

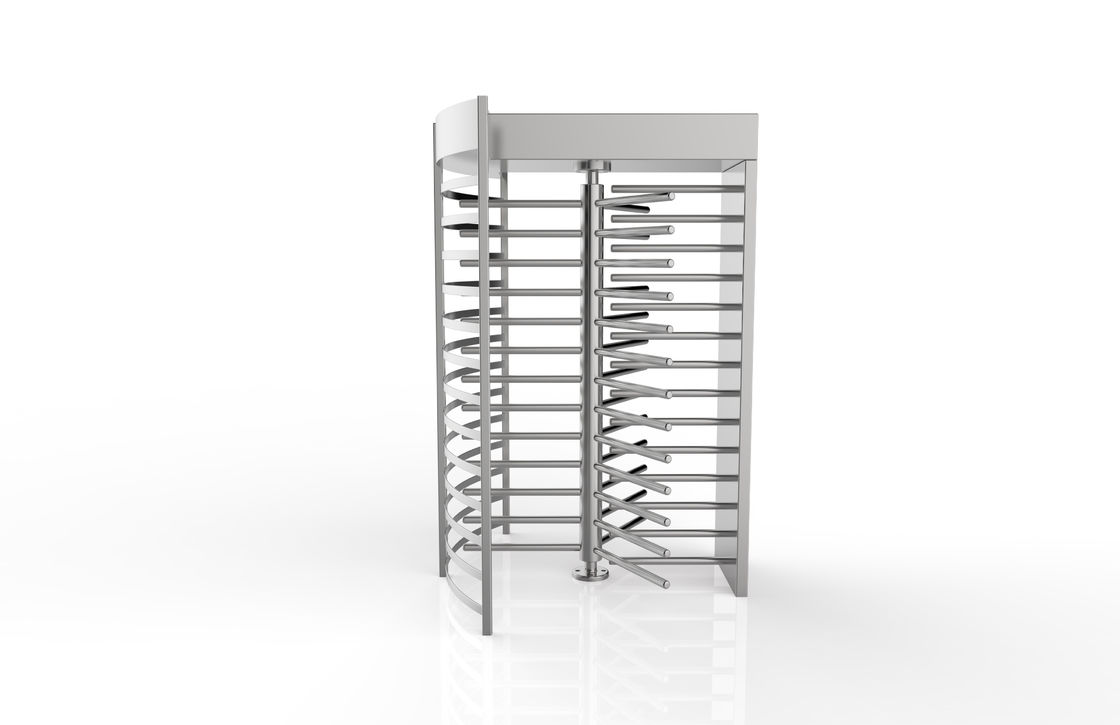

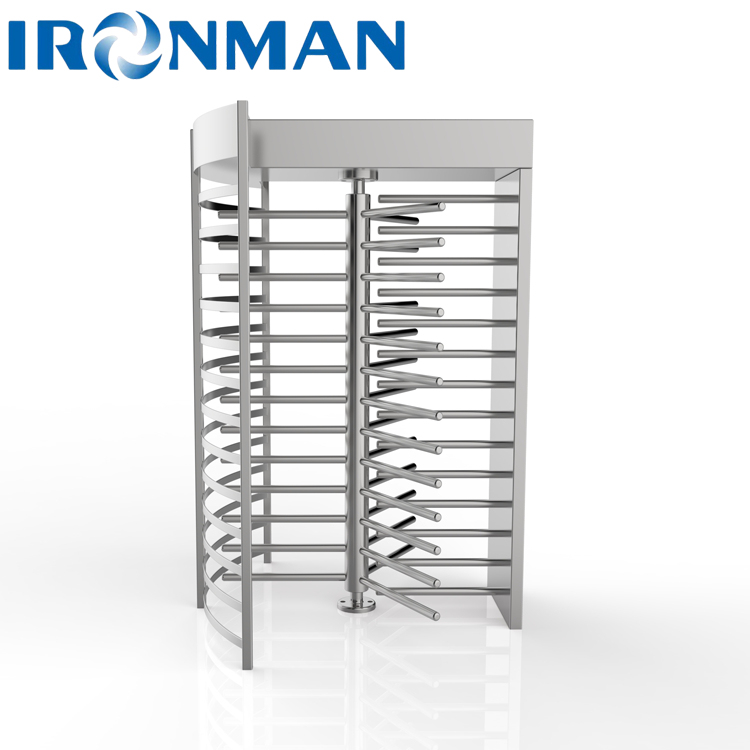

Stainless Steel Full Height Pedestrian Turnstiles 0.2s Opening / Closing Time
Product Description
1. IRONMAN Intelligent series revolving door is well designed and excellent performance, made of innovative technology and high quality materials, with unique features, can be widely used in security, commercial and industrial fields, to meet the various needs of customers.
2. Electronic control using DC motor drive, stable and reliable, low failure rate. Ultra-high brightness traffic indication function: the direction in
dication adopts ultra-high brightness LED light design, the indication is more eye-catching;
3. System integration: compatible with face, thermal, RFID/fingerprint/QR or barcode/ESD access control system, easy to manage.
4. Acceptable: Custom OEM/ODM service, such as size, shape, etc.
5.Made of Aluminum alloy oxidatio.
Function Parameters:
| Thickness: | SUS304 full thickness 1.0mm |
| Work Voltage: | AC110~220V±10V |
| Working Environment Temperature: | -35℃～75℃ |
| Relative Humidity: | 0～90% (No condensation) |
| Communication Interface: | RS232/RS485 serial port |
| Communication Protocol: | MODBUS protocol |
| Working Speed of the Gate: | ≤30 persons/min |
| Swipe pass time: | 10s |
| Channel width | 550-600mm |
Product technical parameters
1. Overall dimensions: 1500 * 1460 * 2300mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
4. Driving current: ＞ 200mA;
5. Communication interface: RS485 electrical standard;
6. Length of gate pole: 500mm;
7. Structure: frame structure/standard stainless steel shell;
8. Swing rod steering: support one-way and two-way (optional);
9. Working environment: indoor and outdoo
Application
subway station,hoverport, tourism, sports, exhibition, swimming hall, residence area, enterprise entrance and exit attendance, special access control etc.
