| Place of Origin: | China |
| Brand Name: | IRONMAN |
| Certification: | CE; FCC; ISO9001 |
| Model Number: | IM.Q801AS |

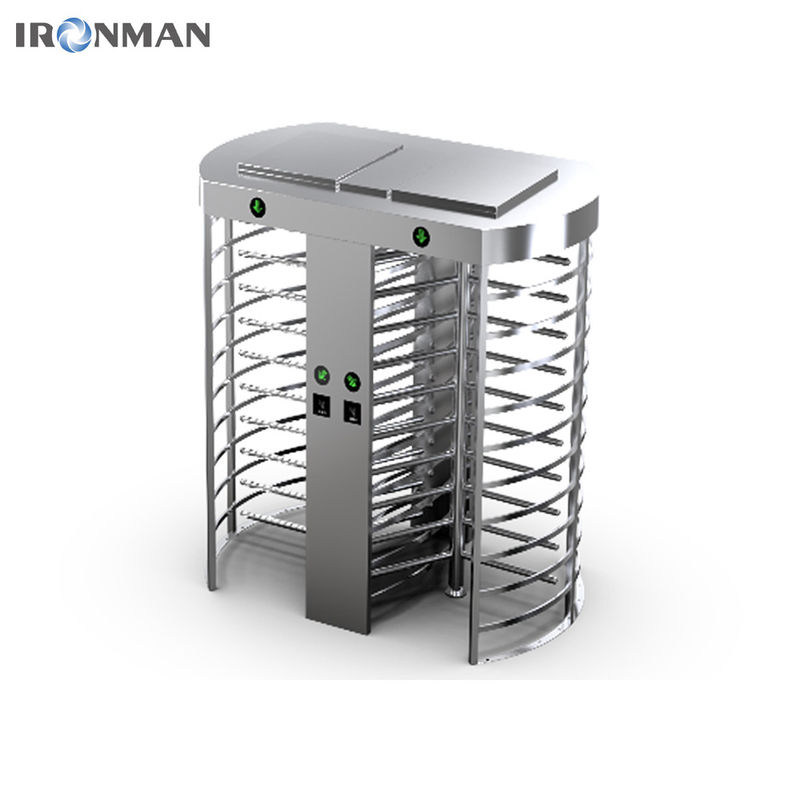

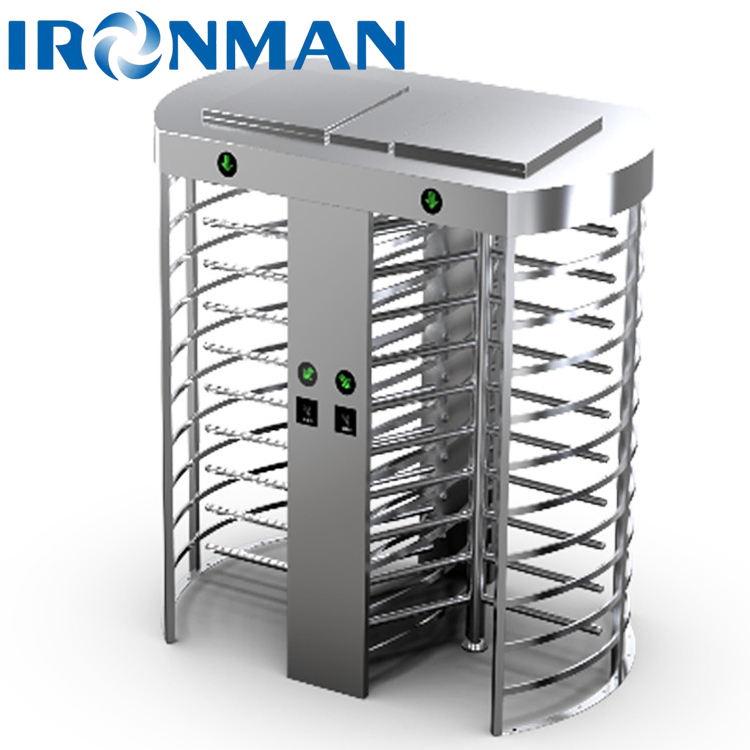

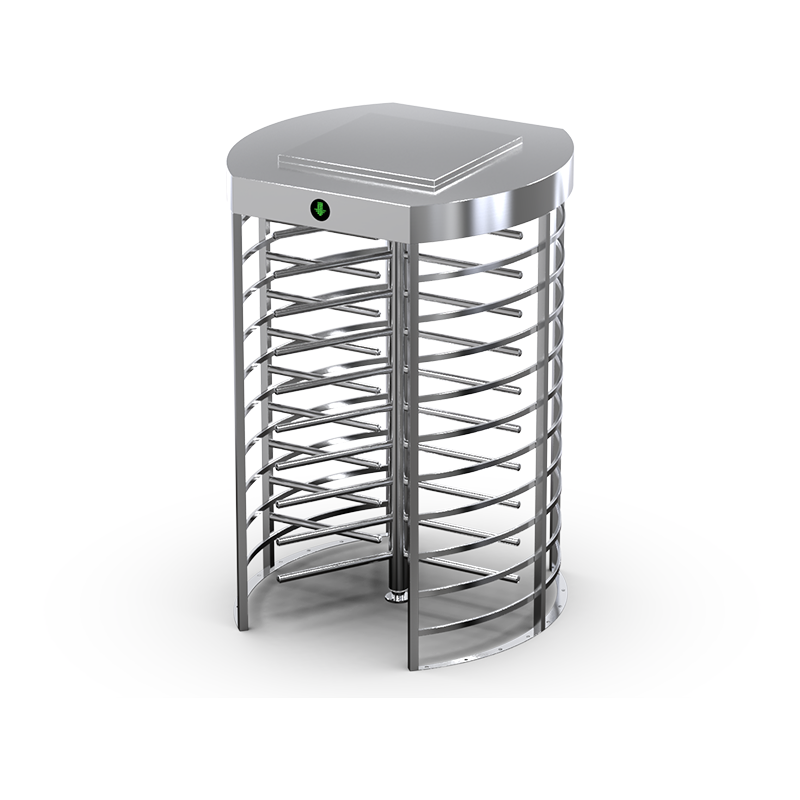

Full Height Electronic Turnstile Gates Access Control 35 Persons/min Pass Speed
Product Description:
The Full Height Turnstile Gate is a highly advanced security product designed for pedestrian access control. It is a full-sized turnstile that provides reliable and efficient security measures for commercial and industrial applications.
The Full Height Turnstile Gate is packaged in a sturdy wooden box, ensuring safe and secure transportation and delivery to your location.
The body of the Full Height Turnstile Gate is made of high-quality SUS304 stainless steel, providing durability, strength, and resistance to corrosion. This makes it suitable for use in various environments, both indoor and outdoor.
The Full Height Turnstile Gate is equipped with a RS485/RS232 communication interface, allowing for easy integration with other security systems and devices. This enables real-time monitoring and control of the turnstile, making it an essential part of any access control system.
The Full Height Turnstile Gate features a LED indicator that provides clear and visible guidance to users. This helps in smooth and efficient traffic flow, making it easier for pedestrians to enter and exit the premises.
The Full Height Turnstile Gate is available in two sleek and modern colors - silver and black. These colors not only add to the aesthetic appeal of the turnstile but also make it easily blend in with any environment.
| Product Parameters | Dimensions: | Double:2400*1460*2300(Customized) |
Box Material: | Stainless steel SUS304 1.2mm |
| Swing Arm Material: | Stainless steel SUS304 | Channel Width: | 600MM(Customized) | |
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing; ◆Work Voltage: AC110~240V±10V ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90%(No condensation) ◆Communication Interface: Switching electrical signal, extensible RS232 serial port ◆Working Speed of the Gate: ≤20 persons/min(The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 5S(If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Functions | ●Passing Indicator Function: The LED indicator board is installed in the eye-catching part of the housing frame to prompt pedestrains the gate's passing status annd direction. | ||
| ●Anti-trepass function: when the card is invalid, no card is swiped or the passage is forbidden, pushing the bar focibly will be regarded as illegal entry, and the system will alarm and lock the brake rode automatically. (so that it could not be pushed) | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. | ||||
| Extensible Functions | ▲Intelligent Linkage Alarm: Can be linked with other alarm monitoring equimpemnet； | |||
| ▲Voice broadcast, expandable voice module, and volume adjustment. | ||||
| ▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state. |
||||
| ▲Passage Mode △Bidirectional passage, swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Projects
Application
Construction Site,Factories,Toilets,Library,etc;
