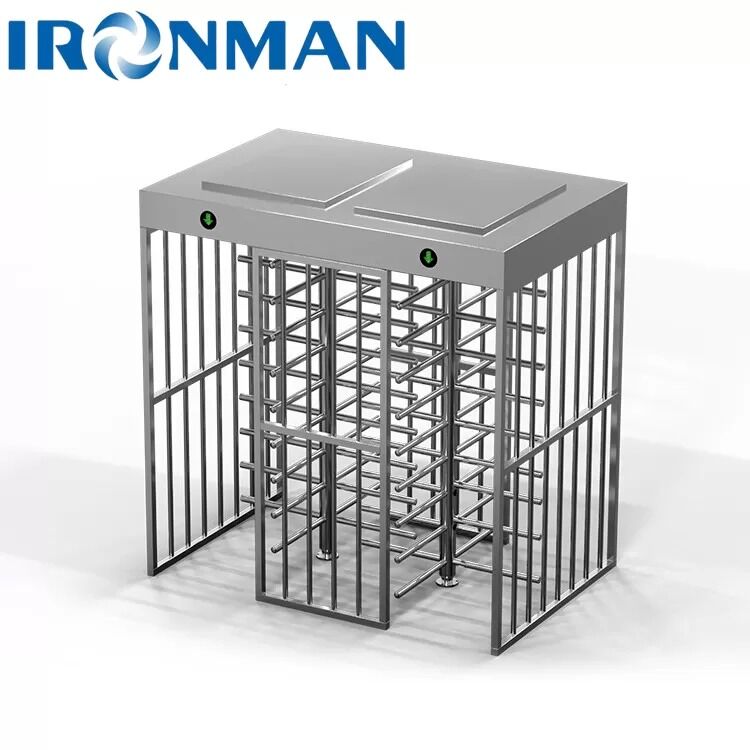

304 Stainless Steel Full Height Turnstile with 30-40 Persons/min Speed and RS485 Communication
  • name

304 Stainless Steel Full Height Turnstile with 30-40 Persons/min Speed and RS485 Communication

Brand Name: Ironman
Model Number: TDH-Q801
MOQ: 1pc
Price: Negotiation
Packaging Details: carton packing
Payment Terms: L/C,T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
china
Certification:
ISO9001
Name:
Full Height Sliding Turnstile
Material:
304 Stainless Steel,thickness Is No Less Than 1.3mm,SUS304 Or Carbon Steel Powder Coating
Power Supply:
AC220V/110V,50Hz
Net Weight:
200kgs
Dimension:
1500*1500*2300 (mm)
Warranty:
1 Year
Passing Speed:
30-40 Persons/min
Passage Width:
<=600mm
Arm Length:
600mm(optional)
Power Consumption:
40W,100W
Color:
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize
Size:
1400*2210*2300mm
Type:
Single Core & Double Core,automatic Tripod Turnstile,Full Height Turnstile
Pass Width:
≤650mm
Housing Material:
304 Stainless Steel
Communication Interface:
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485
Gross Weight:
20kg
Certification:
ISO,CE,RoHS
Supply Ability:
2000 pc per/month
Product Description
Intelligent Full-Height Turnstile for Transport Station Exits
The intelligent full-height turnstile at the transport station exit handles 30-40 people per minute with exceptional security and reliability.
Product Overview
RFID Reader Full Height Turnstile / SUS304 Full Height Gate 24V Security Pedestrian Turnstile
The G535 full-height turnstile offers the highest security among all turnstile machines. Designed for unattended operation with high safety and reliability, it features strong environmental adaptability, making it ideal for locations with stringent security requirements and challenging outdoor conditions.
Technical Specifications
Model Number TDH-Q801
Product Size 1500×1500×2300mm
Pass Width ≤600mm
Frequency 50Hz
Thickness 1.2mm/1.5mm
Material SUS304
Communication Interface RS485, Dry Contact
Throughput Rate 35 persons/minute
Power Supply 100-240V (AC)
Operational Voltage 24V (DC)
Max Power Consumption 30W
Additional Specifications
Power Supply AC220V/110V, 50Hz
Net Weight 200kg
Dimension 1500×1500×2300mm
Warranty 1 Year
Passing Speed 30-40 Persons/min
Passage Width ≤600mm
Arm Length 600mm (optional)
Power Consumption 40W, 100W
Color Optional, Silver, SSB(US32D)- Stainless Steel Brushed / Powder Coating, Silver White or Customize
Type Single Core & Double Core, Automatic Tripod Turnstile, Full Height Turnstile
Housing Material 304 Stainless Steel
Communication Interface RS485 (Distance, TCP Distance ≤1200m), Relay/RS485
Gross Weight 20kg
